2022 Pinarello Dogma F geometry

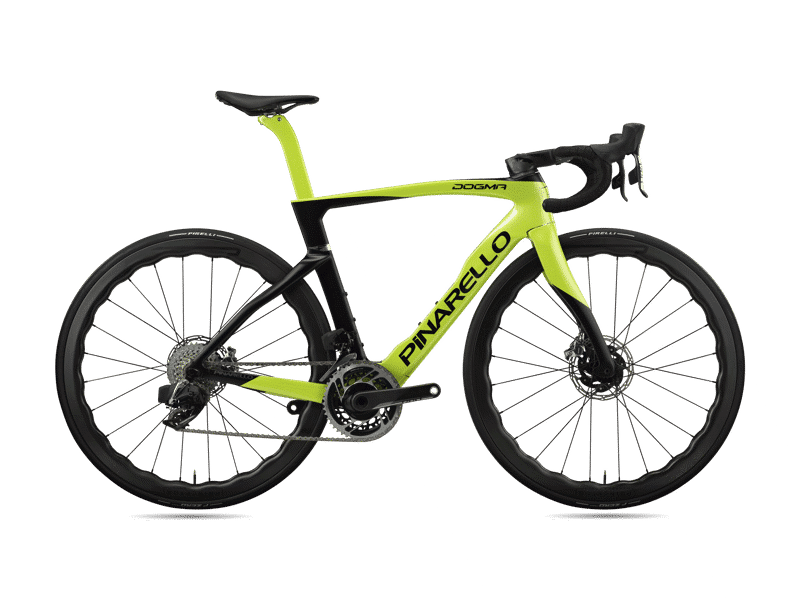

Name: 2022 Pinarello Dogma F
Brand: Pinarello

Full frame geometry for the 2022 Pinarello Dogma F, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	BB drop (mm)	Chainstay (mm)	Fork rake (mm)
430	502.4	351.4	74.4	69.5	97	500	67	406	43
465	517.6	364.8	74.4	70.5	104	515	72	406	43
500	525.4	372.1	74	71.4	109	525	72	406	43
515	532.3	378	73.7	72	114	535	72	406	43
530	542.6	383.3	73.7	72.5	123	545	72	406	43
540	551.2	385	73.4	72.8	131	550	72	408	43
550	561.6	388.8	73.4	72.8	142	557	72	408	43
560	570.2	390.7	73	73.2	149.5	565	72	408	43
575	584.8	396.7	73	73.7	163	575	72	408	43
595	613.3	393.3	72.4	73.4	199	587	67	408	43
620	651.7	410.1	72	73.4	239	620	67	411	43

All measurements in millimetres unless marked (°) for angles.
