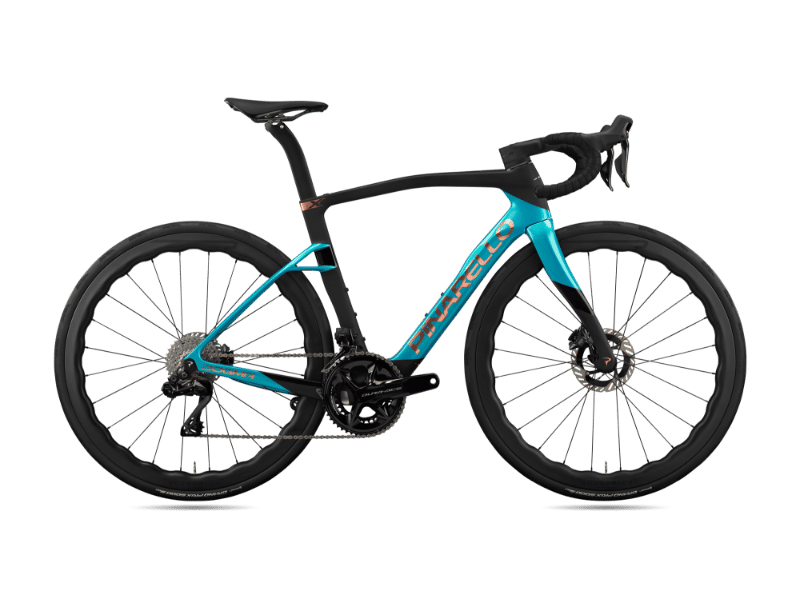

2027 Pinarello New Dogma X geometry
Full frame geometry for the 2027 Pinarello New Dogma X, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 415 | 524.2 | 349.3 | 74.4 | 70 | 111 | 415 | 77 | 422 | 47 |
| 425 | 535.5 | 358.1 | 74.4 | 70 | 123 | 425 | 77 | 422 | 47 |
| 450 | 542.1 | 365.4 | 74 | 70.5 | 128 | 450 | 77 | 422 | 47 |
| 470 | 548.6 | 371.7 | 73.7 | 71 | 133 | 470 | 77 | 422 | 47 |
| 495 | 559 | 379.4 | 73.7 | 71.5 | 142 | 495 | 77 | 422 | 47 |
| 510 | 568.4 | 381.2 | 73.4 | 72 | 150 | 510 | 77 | 422 | 47 |
| 520 | 578.9 | 383 | 73.4 | 72 | 161 | 520 | 77 | 422 | 47 |
| 525 | 588.4 | 384.6 | 73 | 72.5 | 169 | 525 | 77 | 422 | 47 |
| 540 | 601.7 | 390.8 | 73 | 72.8 | 182 | 540 | 77 | 422 | 47 |
| 560 | 632 | 395.3 | 72.4 | 73 | 218 | 560 | 72 | 422 | 47 |
| 600 | 670.3 | 403.8 | 72 | 73 | 258 | 600 | 72 | 422 | 47 |
All measurements in millimetres unless marked (°) for angles.
