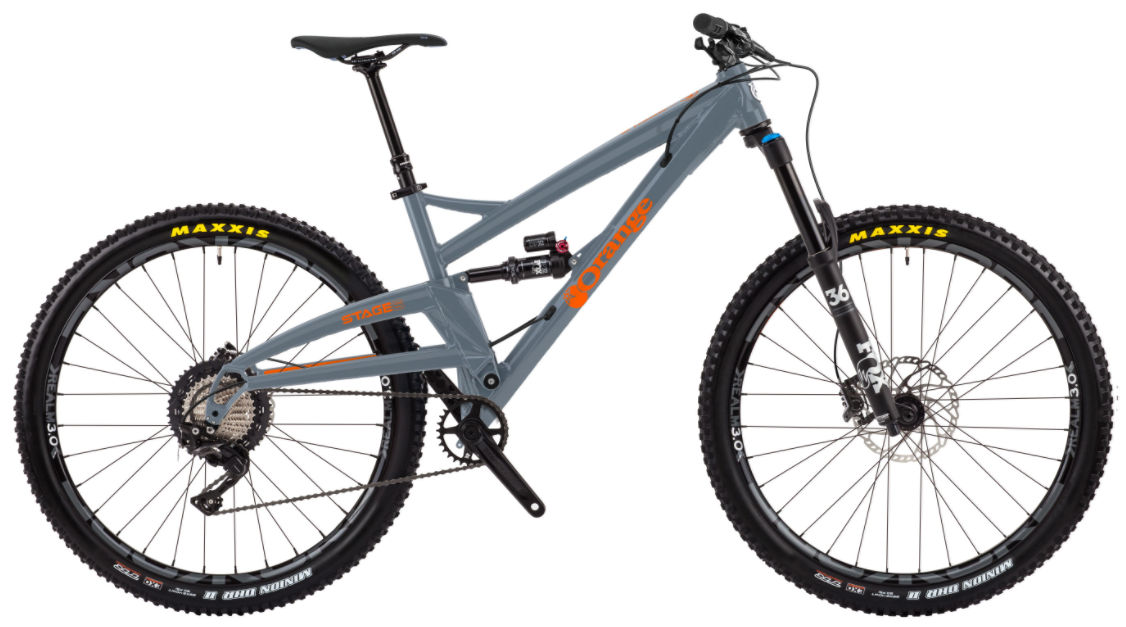

2018 Orange Stage 6 geometry
Full frame geometry for the 2018 Orange Stage 6, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 633 | 444 | 74.5 | 65.5 | 100 | 620 | 733 | 35 | 450 | 1223 |
| L | 643 | 462 | 74.5 | 65.5 | 110 | 640 | 744 | 35 | 450 | 1245 |
| XL | 652 | 479 | 74.5 | 65.5 | 120 | 660 | 797 | 35 | 450 | 1266 |
All measurements in millimetres unless marked (°) for angles.
