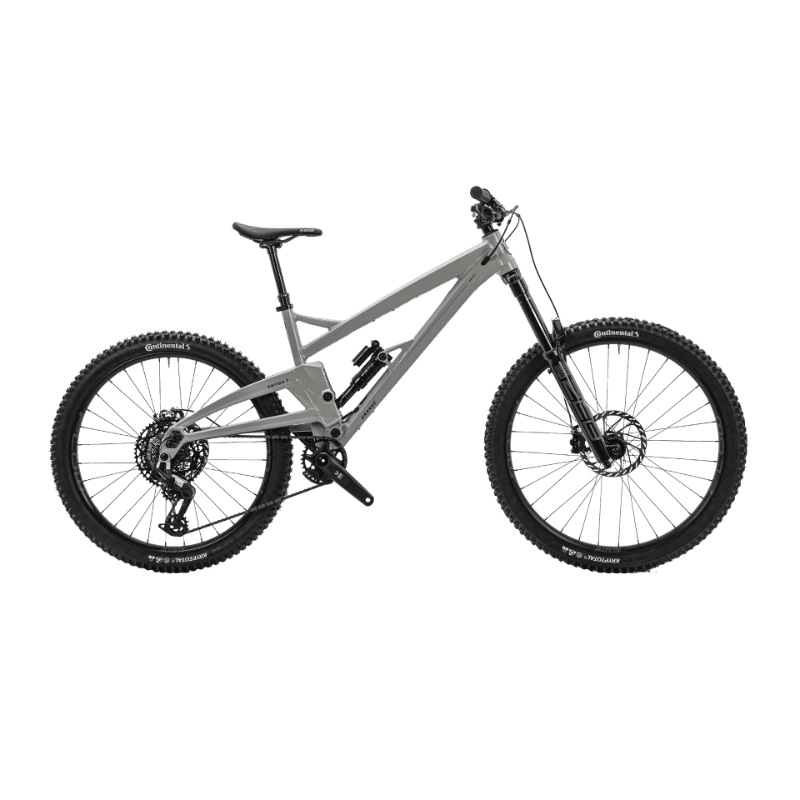

2026 Orange Switch 7 geometry
Full frame geometry for the 2026 Orange Switch 7, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 636 | 466 | 76 | 63 | 110 | 625 | 432 | 724 | 16 | 448 | 1270 | 44 |
| S | 636 | 458 | 76 | 63 | 110 | 605 | 406 | 706 | 16 | 448 | 1250 | 44 |
| L | 646 | 484 | 76 | 63 | 120 | 645 | 457 | 750 | 16 | 448 | 1292 | 44 |
| XL | 654 | 502 | 76 | 63 | 130 | 665 | 483 | 770 | 16 | 448 | 1314 | 44 |
All measurements in millimetres unless marked (°) for angles.
