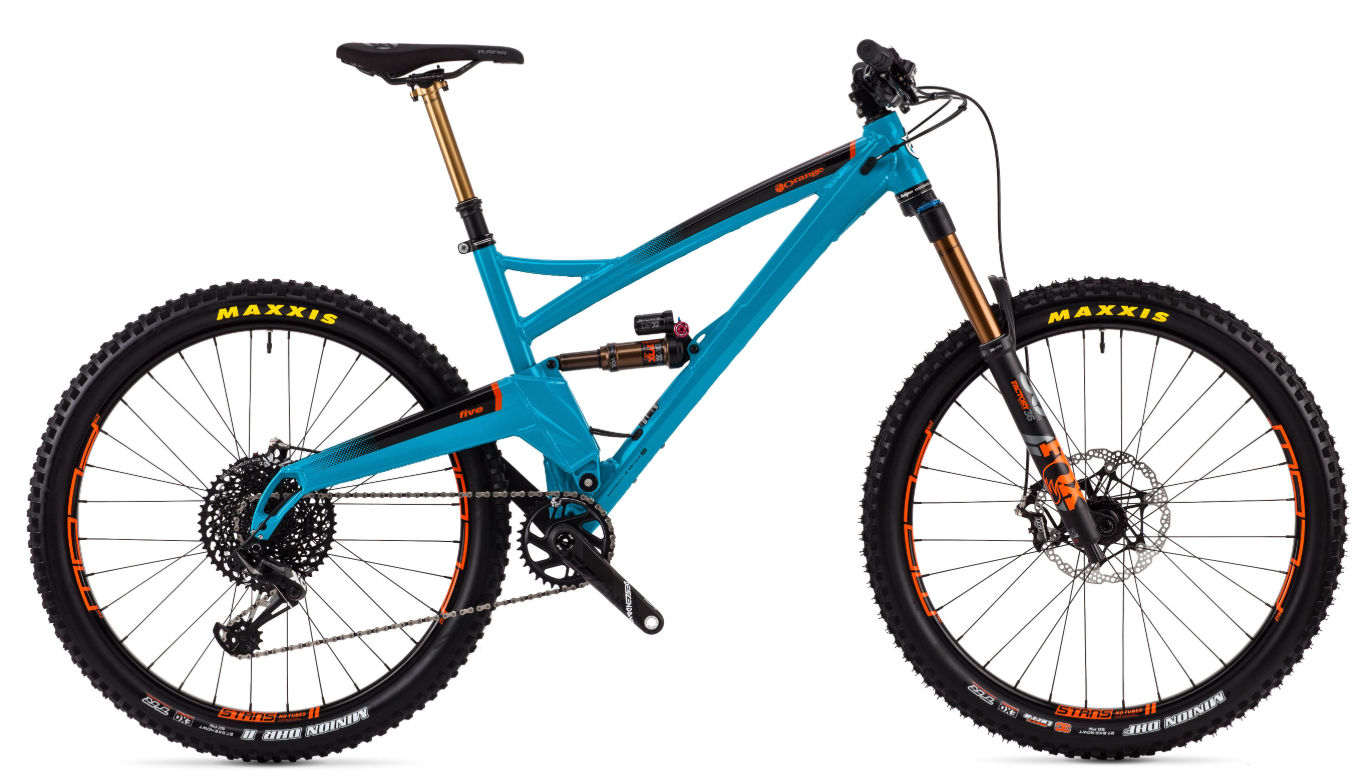

2019 Orange Five MK II geometry
Full frame geometry for the 2019 Orange Five MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 599 | 429 | 74 | 65 | 100 | 575 | 25 | 433 | 1176 |
| L | 608 | 467 | 74 | 65 | 110 | 614 | 25 | 433 | 1217 |
| M | 608 | 447 | 74 | 65 | 110 | 595 | 25 | 433 | 1197 |
| XL | 621 | 483 | 74 | 65 | 125 | 650 | 25 | 433 | 1240 |
| XXL | 626 | 502 | 74 | 65 | 130 | 653 | 25 | 433 | 1261 |
All measurements in millimetres unless marked (°) for angles.
