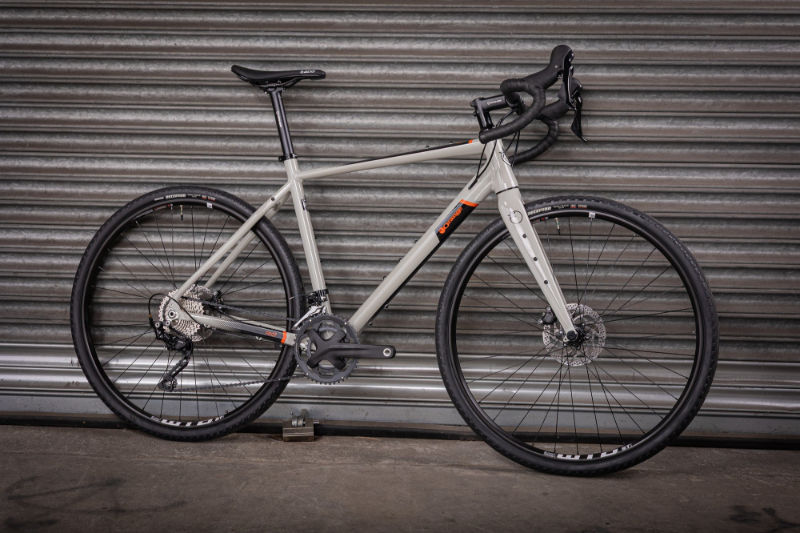

2026 Orange RX9 geometry
Full frame geometry for the 2026 Orange RX9, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 548 | 370 | 74 | 70 | 125 | 527 | 762 | 70 | 435 | 1021 |
| M | 562 | 385 | 74 | 70 | 140 | 546 | 776 | 70 | 435 | 1041 |
| L | 581 | 395 | 74 | 70 | 160 | 562 | 796 | 70 | 435 | 1058 |
| XL | 600 | 405 | 74 | 70 | 180 | 577 | 812 | 70 | 435 | 1075 |
All measurements in millimetres unless marked (°) for angles.
