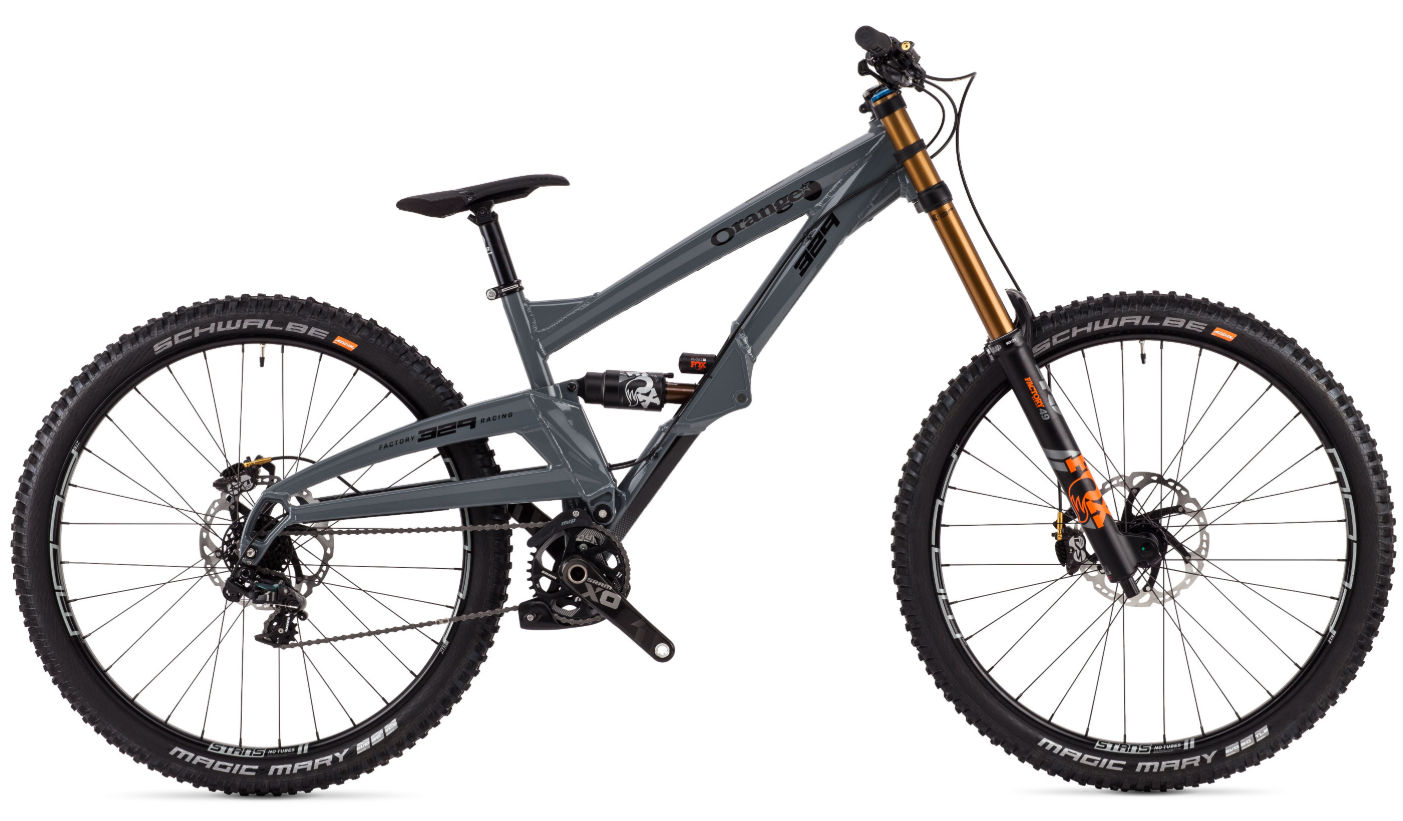

2019 Orange 329 geometry
Full frame geometry for the 2019 Orange 329, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| L | 658 | 444 | 75 | 64.5 | 110 | 620 | 737 | 35 | 469 | 1268 |
| M | 658 | 424 | 75 | 64.5 | 110 | 600 | 732 | 35 | 469 | 1246 |
| XL | 676 | 453 | 75 | 64.5 | 130 | 634 | 747 | 35 | 469 | 1286 |
All measurements in millimetres unless marked (°) for angles.
