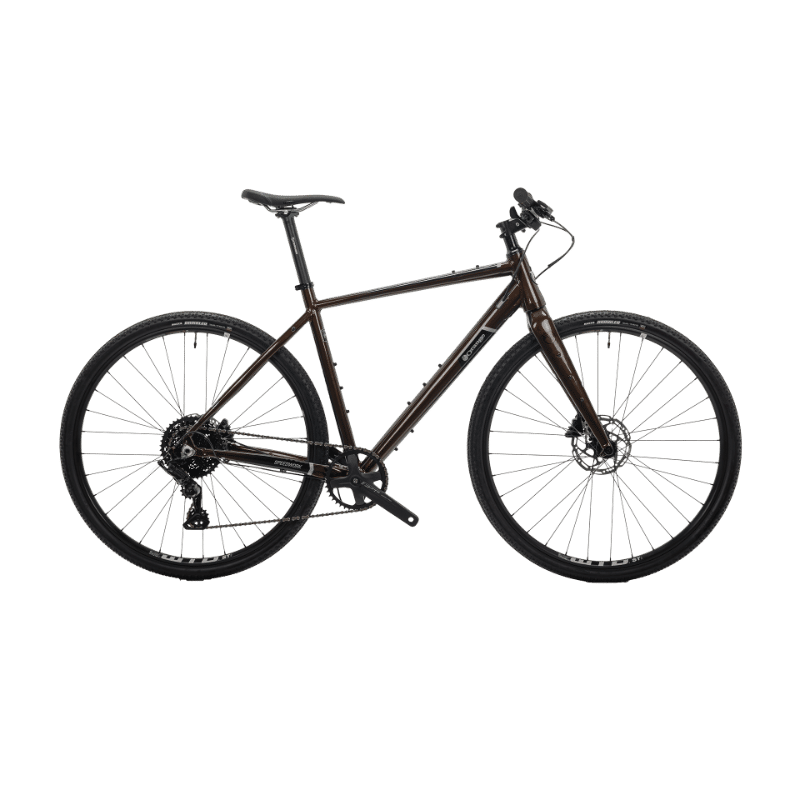

2026 Orange Speedwork geometry
Full frame geometry for the 2026 Orange Speedwork, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 552 | 370 | 74 | 69 | 110 | 528 | 786 | 65 | 433 | 1032 |
| M | 570 | 385 | 74 | 69 | 130 | 548 | 757 | 65 | 433 | 1053 |
| L | 589 | 395 | 74 | 69 | 150 | 564 | 775 | 65 | 433 | 1071 |
| XL | 608 | 405 | 74 | 69 | 170 | 580 | 799 | 65 | 433 | 1088 |
All measurements in millimetres unless marked (°) for angles.
