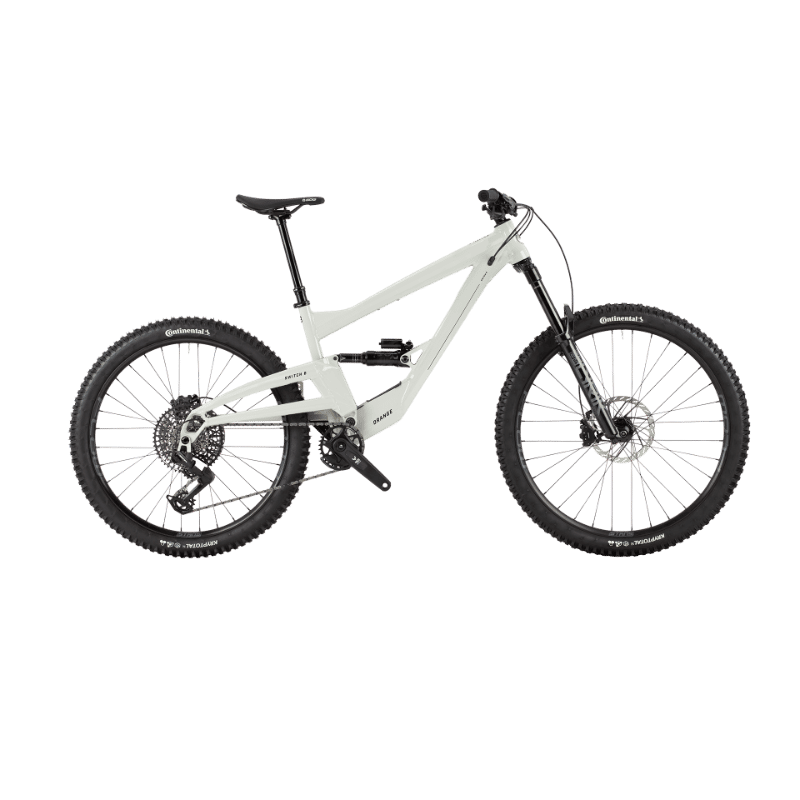

2026 Orange Switch 6 geometry
Full frame geometry for the 2026 Orange Switch 6, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 630 | 468 | 76 | 64 | 110 | 625 | 406 | 733 | 19 | 450 | 1255 | 42 |
| S | 630 | 448 | 76 | 64 | 110 | 605 | 381 | 716 | 19 | 450 | 1235 | 42 |
| L | 639 | 486 | 76 | 64 | 120 | 645 | 432 | 744 | 19 | 450 | 1277 | 42 |
| XL | 648 | 504 | 76 | 64 | 130 | 665 | 457 | 797 | 19 | 450 | 1299 | 42 |
All measurements in millimetres unless marked (°) for angles.
