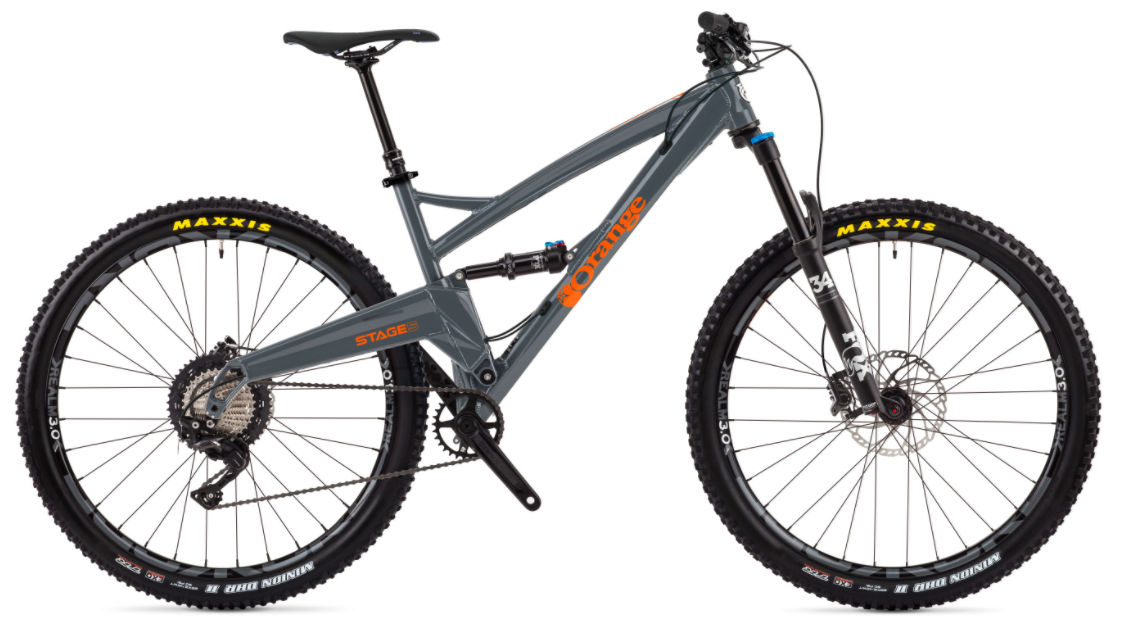

2018 Orange Stage 5 geometry
Full frame geometry for the 2018 Orange Stage 5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 624 | 436 | 74 | 66.5 | 100 | 615 | 720 | 35 | 445 | 1183 |
| L | 633 | 453 | 74 | 66.5 | 110 | 635 | 742 | 35 | 445 | 1204 |
| XL | 642 | 470 | 74 | 66.5 | 120 | 655 | 795 | 35 | 445 | 1225 |
All measurements in millimetres unless marked (°) for angles.
