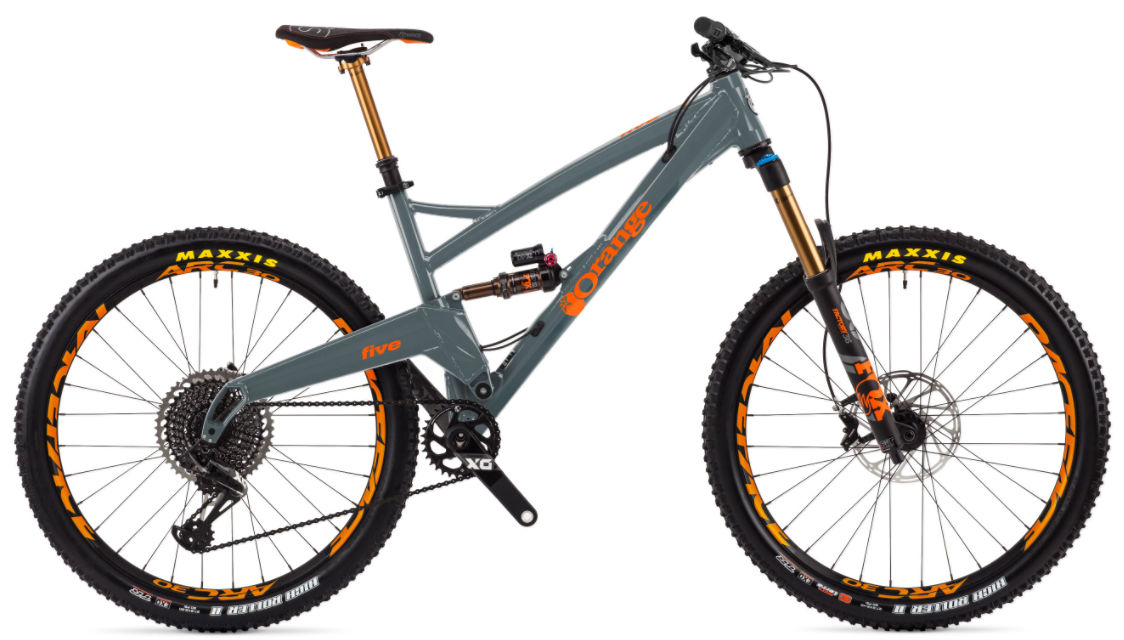

2018 Orange Five MK I geometry
Full frame geometry for the 2018 Orange Five MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 599 | 404 | 74 | 66 | 100 | 575 | 691 | 20 | 426 | 1134 |
| M | 608 | 442 | 74 | 66 | 110 | 615 | 720 | 20 | 426 | 1176 |
| S | 608 | 422 | 74 | 66 | 110 | 595 | 715 | 20 | 426 | 1156 |
| L | 626 | 457 | 74 | 66 | 130 | 635 | 740 | 20 | 426 | 1199 |
| XL | 635 | 474 | 74 | 66 | 140 | 655 | 790 | 20 | 426 | 1220 |
All measurements in millimetres unless marked (°) for angles.
