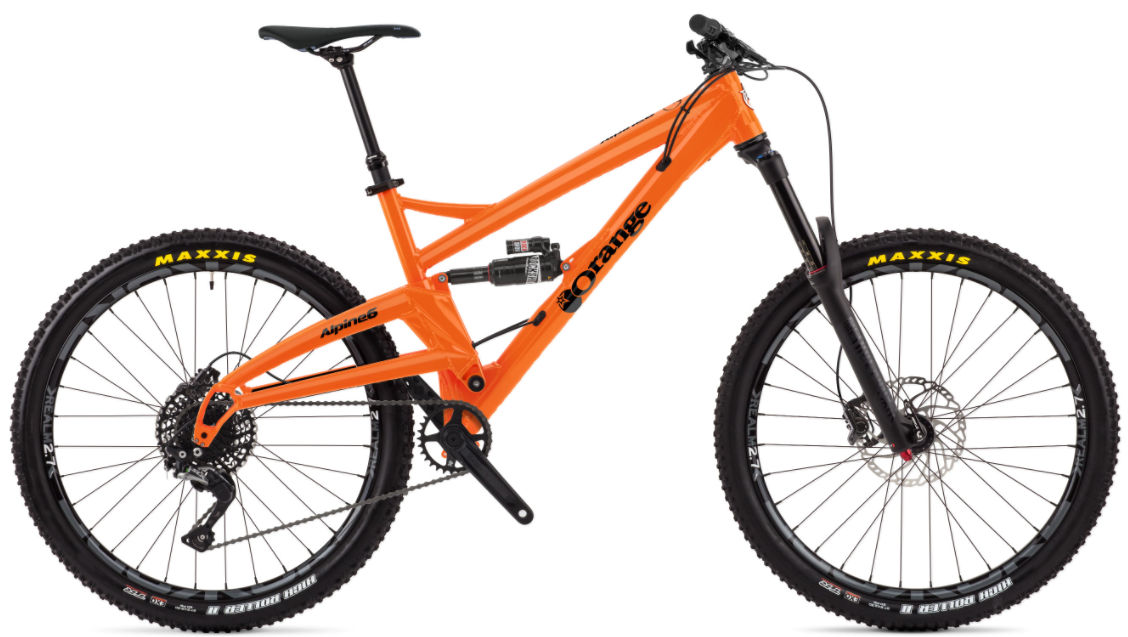

2018 Orange Alpine 6 geometry
Full frame geometry for the 2018 Orange Alpine 6, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 600 | 409 | 74 | 64.5 | 100 | 580 | 713 | 12 | 430 | 1168 |
| M | 618 | 443 | 74 | 64.5 | 120 | 620 | 745 | 12 | 430 | 1210 |
| S | 618 | 423 | 74 | 64.5 | 120 | 600 | 730 | 12 | 430 | 1190 |
| L | 622 | 461 | 74 | 64.5 | 125 | 640 | 758 | 12 | 430 | 1231 |
| XL | 631 | 478 | 74 | 64.5 | 130 | 660 | 792 | 12 | 430 | 1253 |
All measurements in millimetres unless marked (°) for angles.
