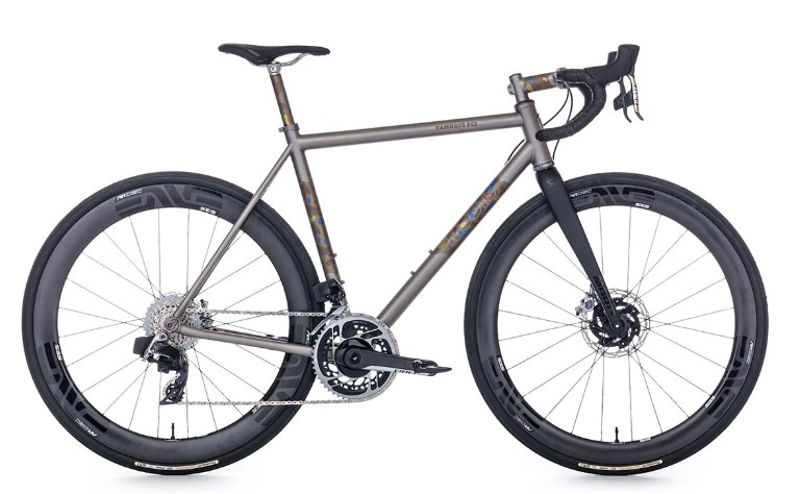

2022 Moots Vamoots RCS geometry
Full frame geometry for the 2022 Moots Vamoots RCS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 544 | 366 | 75 | 70.5 | 110 | 515 | 460 | 75 | 420 | 47 |
| 50 | 554 | 371 | 75 | 71 | 120 | 520 | 500 | 75 | 420 | 47 |
| 52 | 566 | 371 | 74.5 | 71.5 | 130 | 530 | 520 | 75 | 420 | 47 |
| 54 | 577 | 378 | 74 | 72 | 140 | 545 | 540 | 75 | 420 | 47 |
| 55 | 587 | 381 | 73.5 | 72.5 | 150 | 555 | 550 | 74 | 420 | 47 |
| 56 | 597 | 384 | 73.3 | 72.5 | 160 | 565 | 560 | 74 | 420 | 47 |
| 58 | 607 | 389 | 73 | 73 | 170 | 575 | 570 | 72 | 420 | 47 |
| 60 | 625 | 396 | 72.8 | 73.3 | 190 | 590 | 580 | 70 | 420 | 47 |
| 62 | 645 | 404 | 72.8 | 73.5 | 210 | 605 | 600 | 70 | 420 | 47 |
All measurements in millimetres unless marked (°) for angles.
