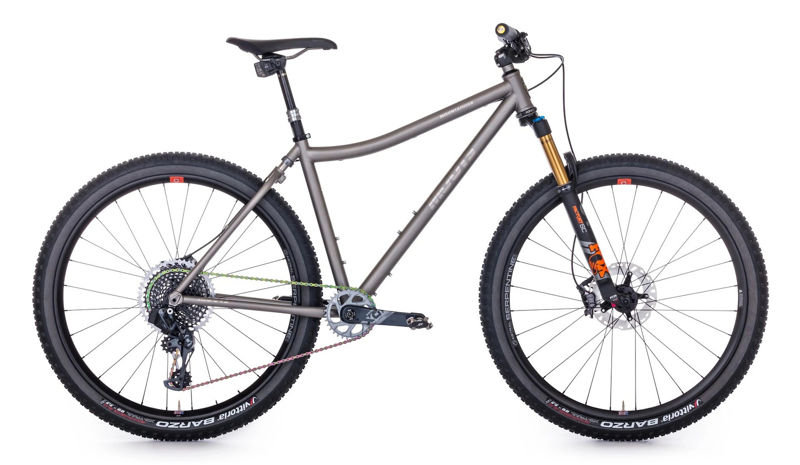

2021 Moots Mountaineer geometry
Full frame geometry for the 2021 Moots Mountaineer, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) |
|---|---|---|---|---|---|---|---|---|
| S | 612 | 416 | 75 | 68 | 100 | 587.4 | 782.3 | 54 |
| M | 622 | 419 | 74.3 | 68 | 110 | 596.9 | 795 | 54 |
| L | 635 | 444 | 73.8 | 68 | 120 | 635 | 828 | 60 |
| XL | 645 | 465 | 73.5 | 68 | 130 | 660.4 | 856 | 60 |
All measurements in millimetres unless marked (°) for angles.
