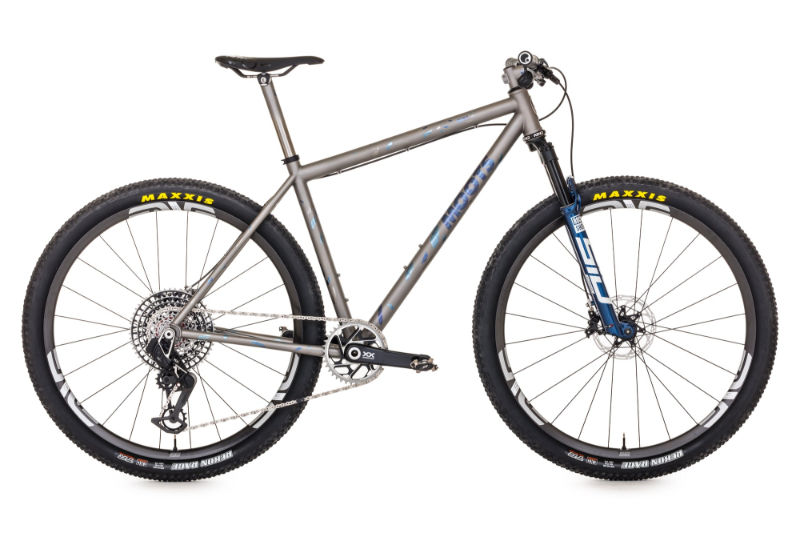

2026 Moots MXC geometry
Full frame geometry for the 2026 Moots MXC, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 601 | 414 | 74.5 | 69 | 100 | 586 | 406 | 751 | 62 | 444 |
| M | 609 | 437 | 74.5 | 69 | 100 | 610 | 445 | 777 | 62 | 444 |
| L | 619 | 458 | 74 | 69 | 110 | 638 | 470 | 798 | 62 | 444 |
| XL | 637 | 483 | 74 | 69 | 130 | 668 | 508 | 829 | 62 | 444 |
All measurements in millimetres unless marked (°) for angles.
