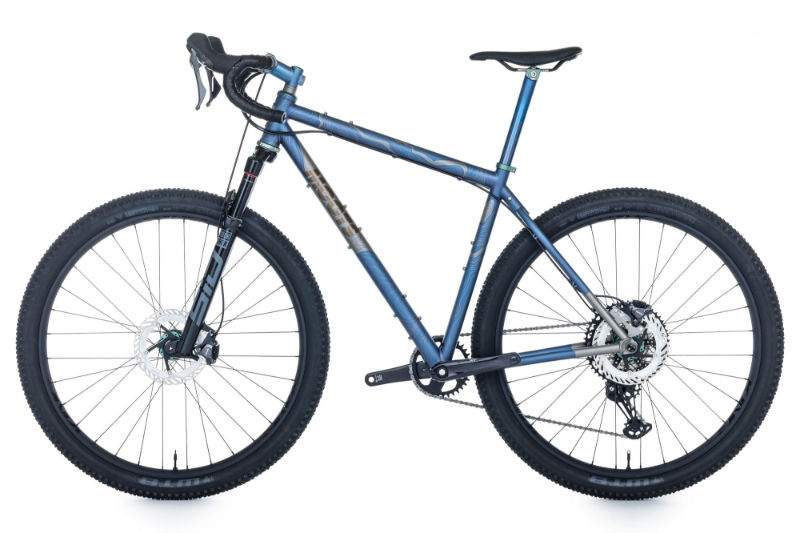

2026 Moots Scrambler geometry
Full frame geometry for the 2026 Moots Scrambler, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 626 | 354 | 74.5 | 70 | 100 | 530 | 431.8 | 734 | 70 | 444 | 44 |
| M | 645 | 375 | 74.3 | 70 | 120 | 560 | 508 | 833 | 70 | 444 | 44 |
| L | 654 | 389 | 74 | 70 | 130 | 580 | 558.8 | 866 | 70 | 444 | 44 |
| XL | 664 | 404 | 73.8 | 70 | 140 | 600 | 584.2 | 887 | 70 | 444 | 44 |
All measurements in millimetres unless marked (°) for angles.
