2023 Moots · MHB

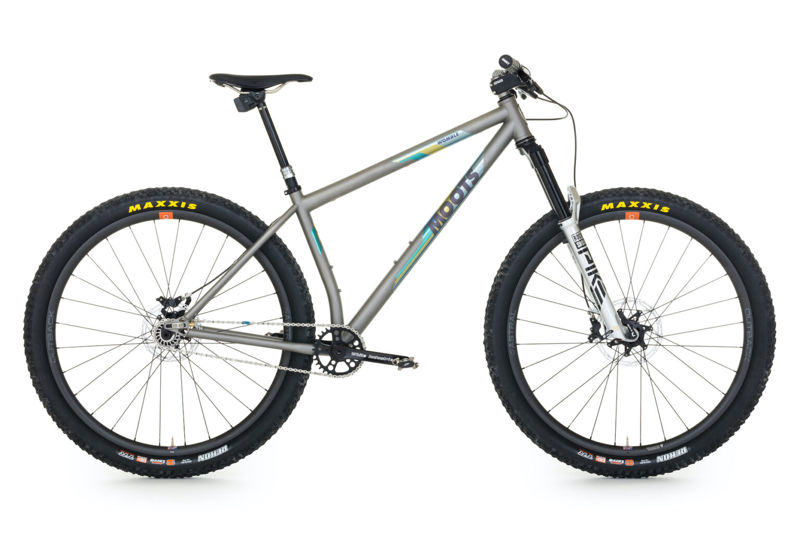

2023 Moots Womble Slider geometry
Full frame geometry for the 2023 Moots Womble Slider, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| S | 622 | 419 | 76.2 | 67.1 | 100 | 232 | 57 | 434 |
| M | 632 | 450 | 75.7 | 67.1 | 110 | 245 | 57 | 434 |
| L | 640 | 470 | 75.3 | 67.2 | 120 | 255 | 57 | 434 |
| XL | 650 | 505 | 74.8 | 67.2 | 130 | 270 | 57 | 434 |
All measurements in millimetres unless marked (°) for angles.
