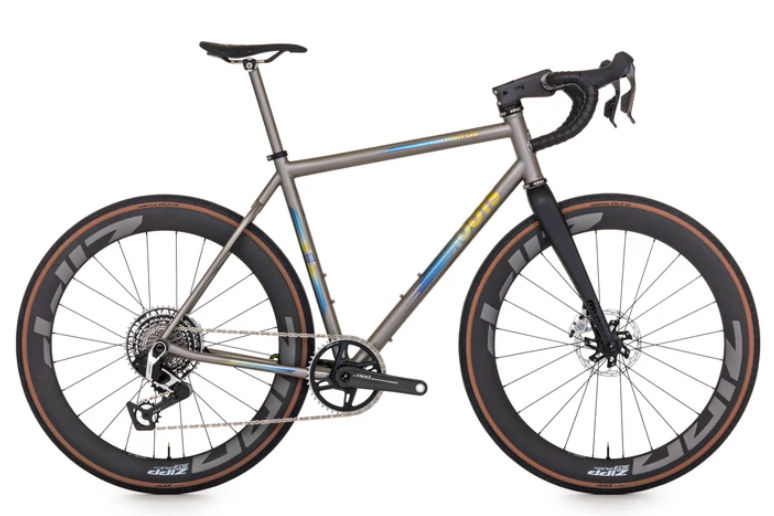

2025 Moots Routt CRD geometry
Full frame geometry for the 2025 Moots Routt CRD, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 575 | 362 | 75 | 71 | 120 | 520 | 460 | 749 | 71 | 430 |
| 52 | 585 | 362 | 74.3 | 71 | 130 | 530 | 480 | 762 | 71 | 430 |
| 54 | 594 | 372 | 74 | 71.5 | 140 | 545 | 510 | 782 | 69 | 430 |
| 55 | 603 | 374 | 73.5 | 71.5 | 150 | 555 | 520 | 792 | 69 | 430 |
| 56 | 615 | 379 | 73.5 | 71.5 | 150 | 565 | 530 | 803 | 69 | 430 |
| 58 | 624 | 398 | 73 | 72 | 170 | 590 | 550 | 815 | 69 | 430 |
| 60 | 644 | 405 | 72.8 | 72.3 | 190 | 605 | 570 | 861 | 68 | 430 |
All measurements in millimetres unless marked (°) for angles.
