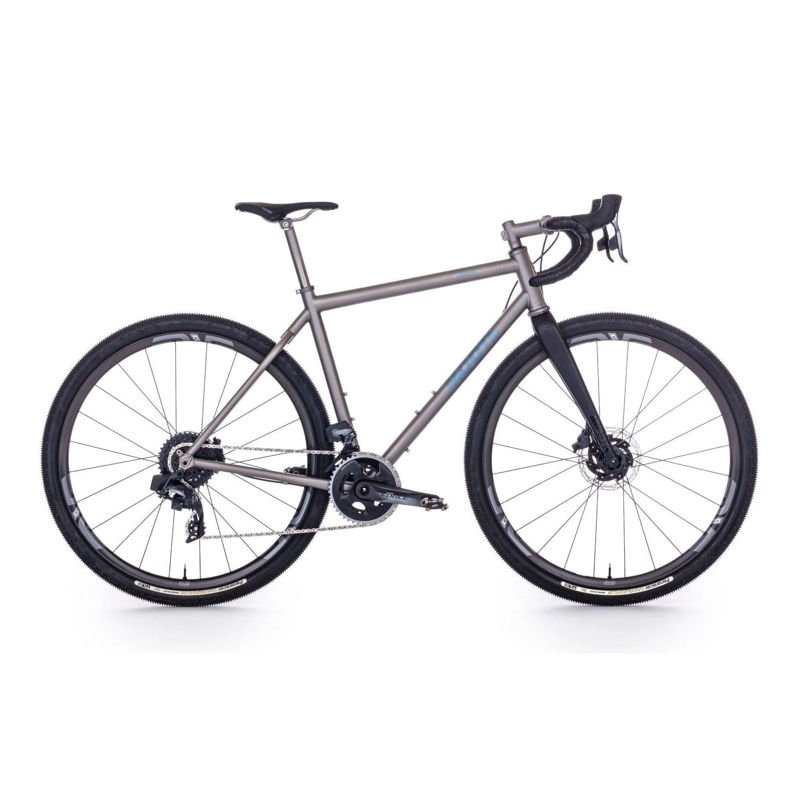

2021 Moots Routt 45 geometry
Full frame geometry for the 2021 Moots Routt 45, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 560 | 367 | 75 | 70.3 | 120 | 520 | 460 | 71 | 1023 | 47 |
| 52 | 579 | 364 | 74.3 | 70.3 | 140 | 530 | 480 | 71 | 1027 | 47 |
| 54 | 587 | 374 | 74 | 70.5 | 150 | 545 | 510 | 69 | 1038 | 47 |
| 55 | 596 | 376 | 73.5 | 70.5 | 160 | 555 | 520 | 69 | 1044 | 47 |
| 56 | 608 | 385 | 73.3 | 71 | 170 | 570 | 530 | 69 | 1052 | 47 |
| 58 | 627 | 392 | 73 | 71 | 190 | 585 | 550 | 69 | 1065 | 47 |
| 60 | 647 | 403 | 72.8 | 71.5 | 210 | 605 | 570 | 68 | 1078 | 47 |
All measurements in millimetres unless marked (°) for angles.
