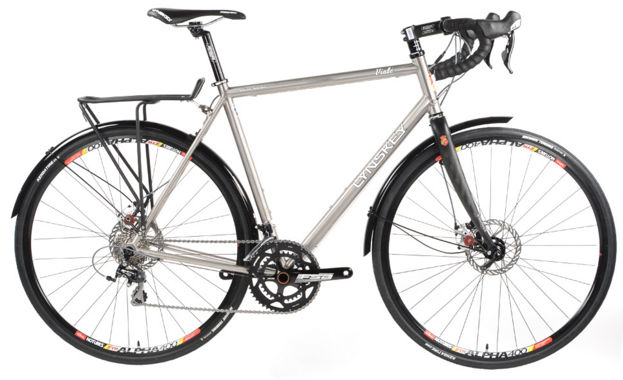

2016 Lynskey Viale geometry
Full frame geometry for the 2016 Lynskey Viale, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 545 | 367 | 74 | 71 | 98 | 525 | 460 | 705 | 80 | 430 | 45 |
| S | 578 | 368 | 73.5 | 72.5 | 128 | 540 | 490 | 739 | 80 | 430 | 45 |
| M | 590 | 373 | 73.3 | 72.8 | 138 | 550 | 550 | 787 | 80 | 430 | 45 |
| ML | 595 | 376 | 73 | 72.8 | 148 | 558 | 560 | 808 | 78 | 430 | 45 |
| L | 614 | 373 | 72.8 | 73 | 168 | 563 | 575 | 826 | 76 | 430 | 45 |
| XL | 624 | 379 | 72.5 | 73 | 178 | 575 | 590 | 836 | 76 | 430 | 45 |
All measurements in millimetres unless marked (°) for angles.
