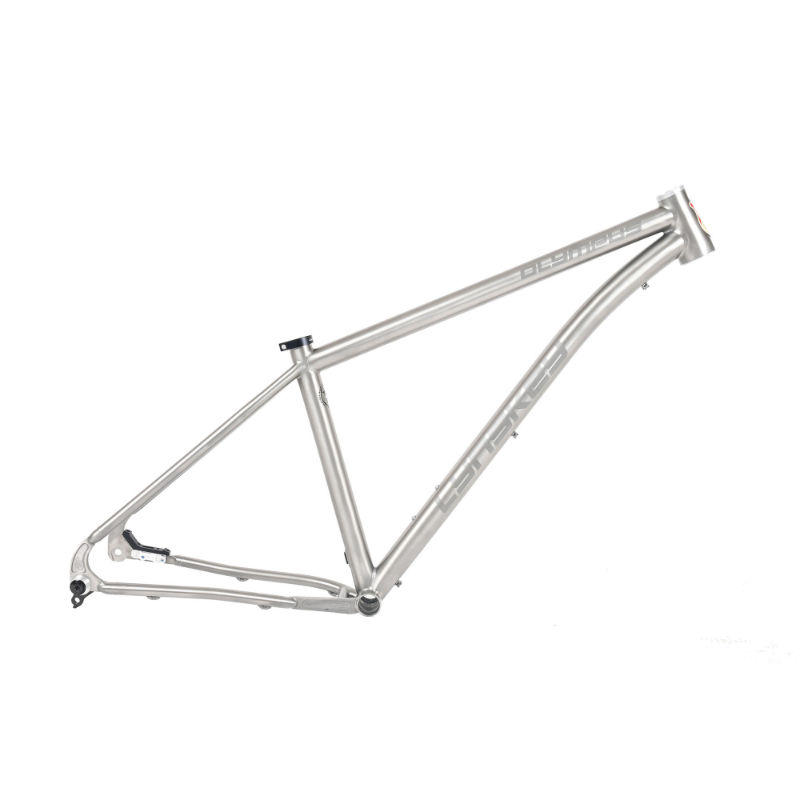

2026 Lynskey Olympus geometry
Full frame geometry for the 2026 Lynskey Olympus, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MD | 644 | 465 | 77 | 65 | 111 | 614 | 410 | 736 | 61 | 788 | 445 | 1226 | 44 |
| SM | 644 | 440 | 76 | 65 | 111 | 601 | 375 | 711 | 61 | 763 | 445 | 1201 | 44 |
| LG | 649 | 490 | 77 | 65 | 116 | 640 | 440 | 769 | 61 | 815 | 445 | 1253 | 44 |
| XL | 652 | 520 | 77 | 65 | 120 | 671 | 480 | 812 | 61 | 847 | 445 | 1285 | 44 |
All measurements in millimetres unless marked (°) for angles.
