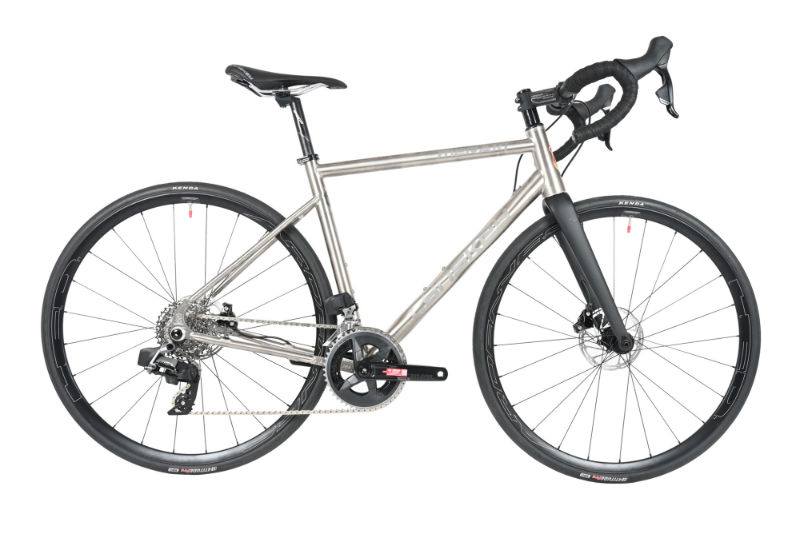

2026 Lynskey Meraki geometry
Full frame geometry for the 2026 Lynskey Meraki, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 520 | 364 | 75.5 | 70.5 | 120 | 498 | 460 | 738 | 75 | 574 | 415 | 977 | 45 |
| SM | 541 | 374 | 74.5 | 71 | 140 | 520 | 480 | 750 | 75 | 583 | 415 | 985 | 45 |
| MD | 561 | 383 | 74 | 71.5 | 160 | 544 | 500 | 770 | 75 | 598 | 415 | 1016 | 45 |
| ML | 580 | 392 | 73.5 | 71.5 | 180 | 558 | 520 | 806 | 75 | 613 | 415 | 1031 | 45 |
| LG | 597 | 400 | 73.5 | 73.5 | 198 | 577 | 540 | 830 | 75 | 627 | 415 | 1044 | 45 |
| XL | 617 | 410 | 73.5 | 73.5 | 218 | 593 | 560 | 840 | 75 | 638 | 415 | 1054 | 45 |
All measurements in millimetres unless marked (°) for angles.
