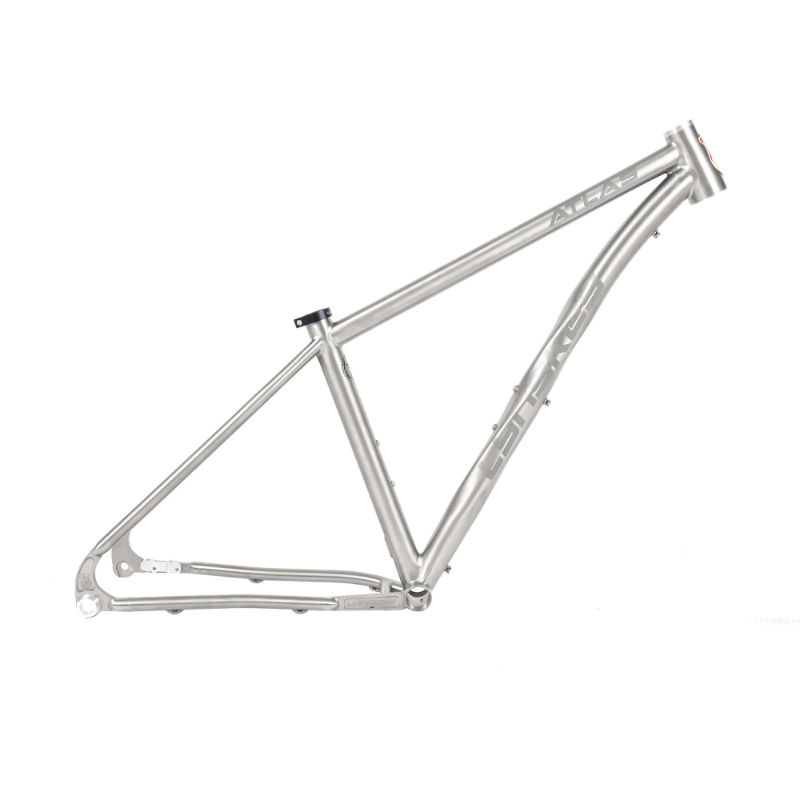

2026 Lynskey Atlas geometry
Full frame geometry for the 2026 Lynskey Atlas, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MD | 630 | 436 | 76 | 68.5 | 108 | 593 | 432 | 757 | 58 | 711 | 445 | 1150 | 44 |
| SM | 630 | 421 | 76 | 68.5 | 108 | 578 | 394 | 721 | 58 | 696 | 445 | 1135 | 44 |
| LG | 634 | 451 | 76 | 68.5 | 112 | 609 | 460 | 784 | 58 | 727 | 445 | 1166 | 44 |
| XL | 637 | 466 | 76 | 68.5 | 116 | 625 | 595 | 839 | 58 | 744 | 445 | 1182 | 44 |
All measurements in millimetres unless marked (°) for angles.
