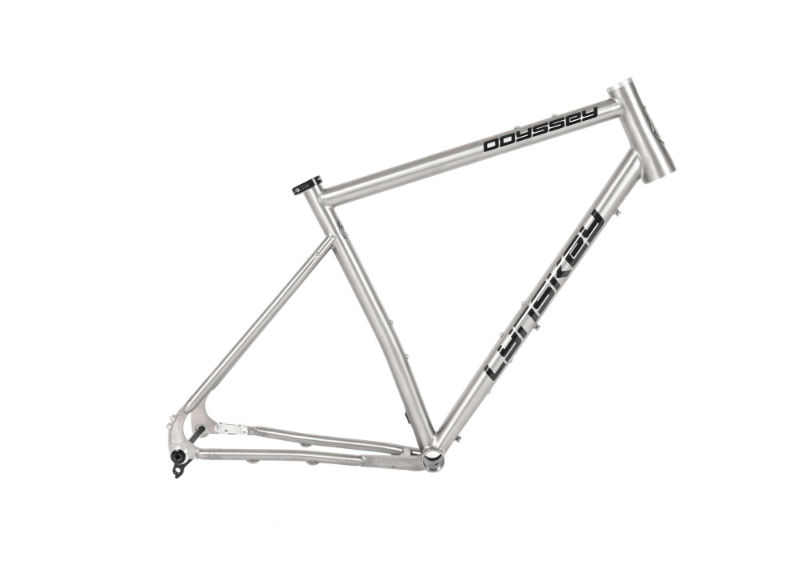

2026 Lynskey Odyssey geometry
Full frame geometry for the 2026 Lynskey Odyssey, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 539 | 369 | 74.5 | 70 | 110 | 530 | 450 | 716 | 80 | 590 | 430 | 1007 | 45 |
| SM | 551 | 360 | 74 | 70 | 126 | 533 | 470 | 737 | 80 | 585 | 430 | 1004 | 45 |
| MD | 572 | 360 | 74 | 70.5 | 145 | 547 | 490 | 758 | 77.5 | 588 | 430 | 1006 | 45 |
| ML | 593 | 367 | 73.5 | 70.5 | 170 | 560 | 510 | 780 | 75 | 603 | 430 | 1019 | 45 |
All measurements in millimetres unless marked (°) for angles.
