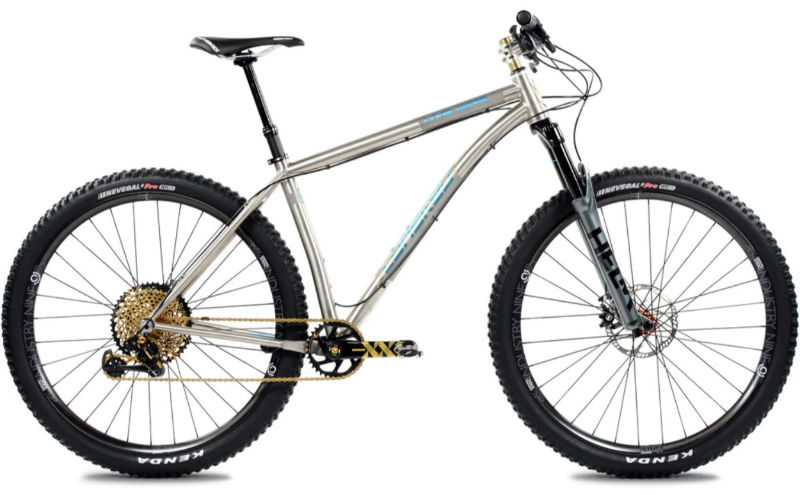

2026 Lynskey Live Wire geometry
Full frame geometry for the 2026 Lynskey Live Wire, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MD | 651 | 447 | 75 | 66.5 | 111 | 619 | 410 | 736 | 61 | 754 | 445 | 1185 | 44 |
| SM | 651 | 429 | 75 | 66.5 | 111 | 599 | 375 | 711 | 61 | 737 | 445 | 1165 | 44 |
| LG | 656 | 467 | 75 | 66.5 | 116 | 645 | 455 | 769 | 61 | 776 | 445 | 1213 | 44 |
| XL | 660 | 497 | 75 | 66.5 | 120 | 679 | 505 | 812 | 61 | 808 | 445 | 1244 | 44 |
All measurements in millimetres unless marked (°) for angles.
