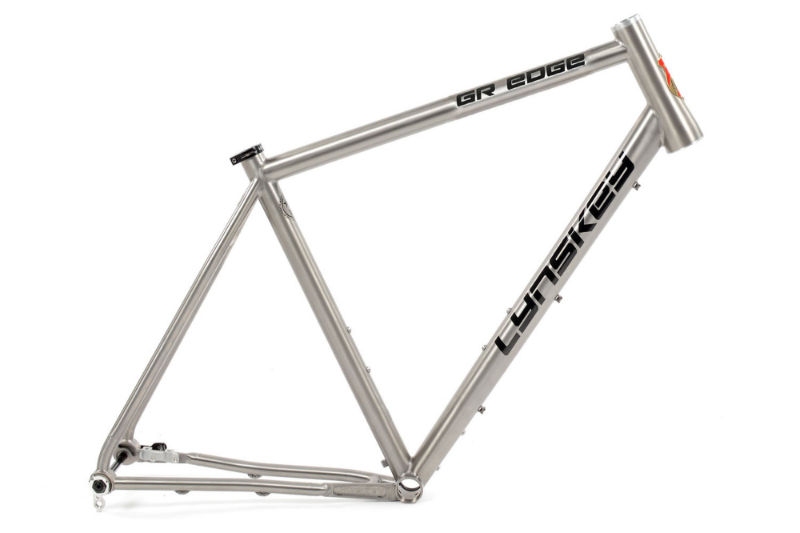

2026 Lynskey GR Edge geometry
Full frame geometry for the 2026 Lynskey GR Edge, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 530 | 370 | 74 | 70 | 110 | 524 | 450 | 716 | 80 | 595 | 435 | 1018 | 45 |
| SM | 550 | 375 | 73.5 | 70 | 126 | 538 | 470 | 737 | 77.5 | 605 | 435 | 1028 | 45 |
| MD | 570 | 380 | 73.5 | 70.5 | 145 | 550 | 490 | 758 | 77.5 | 612 | 435 | 1036 | 45 |
| ML | 590 | 385 | 73 | 70.5 | 169 | 565 | 510 | 780 | 75 | 625 | 435 | 1050 | 45 |
| LG | 615 | 390 | 73 | 71 | 193 | 580 | 530 | 800 | 75 | 633 | 435 | 1057 | 45 |
| XL | 635 | 400 | 72.5 | 71 | 217 | 600 | 550 | 824 | — | 650 | 435 | 1075 | 45 |
All measurements in millimetres unless marked (°) for angles.
