2016 Lynskey · RD

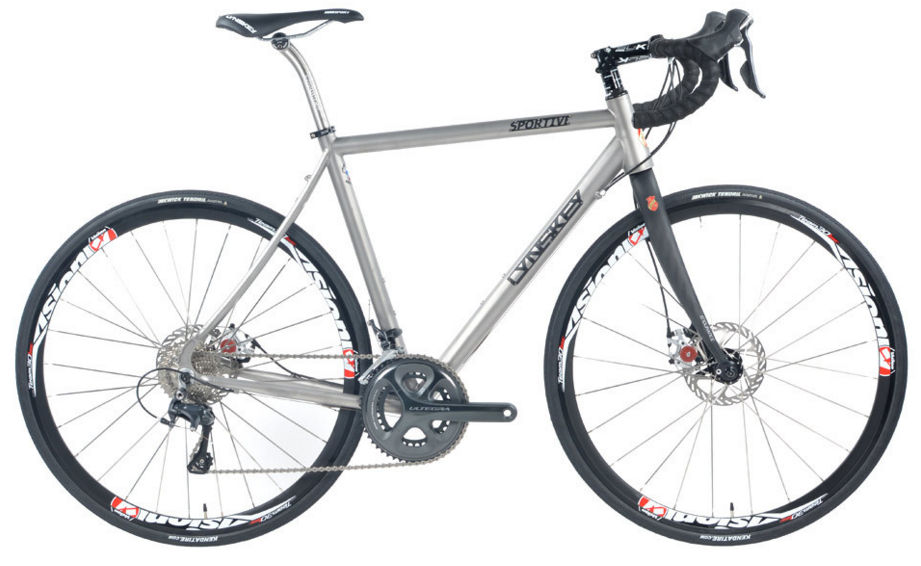

2016 Lynskey Sportive Disc geometry
Full frame geometry for the 2016 Lynskey Sportive Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 521 | 354 | 74.5 | 72 | 105 | 500 | 480 | 739 | 71 | 552 | 425 | 967 | 45 |
| S | 535 | 366 | 74 | 72 | 120 | 520 | 500 | 750 | 71 | 569 | 425 | 983 | 45 |
| M | 549 | 366 | 73.5 | 72 | 135 | 530 | 520 | 770 | 70 | 574 | 425 | 988 | 45 |
| ML | 565 | 382 | 73 | 72 | 150 | 555 | 540 | 788 | 70 | 589 | 425 | 1004 | 45 |
| L | 578 | 388 | 72.5 | 72 | 165 | 570 | 560 | 803 | 69 | 599 | 425 | 1014 | 45 |
| XL | 594 | 398 | 72 | 72 | 180 | 590 | 580 | 824 | 69 | 610 | 425 | 1025 | 45 |
All measurements in millimetres unless marked (°) for angles.
