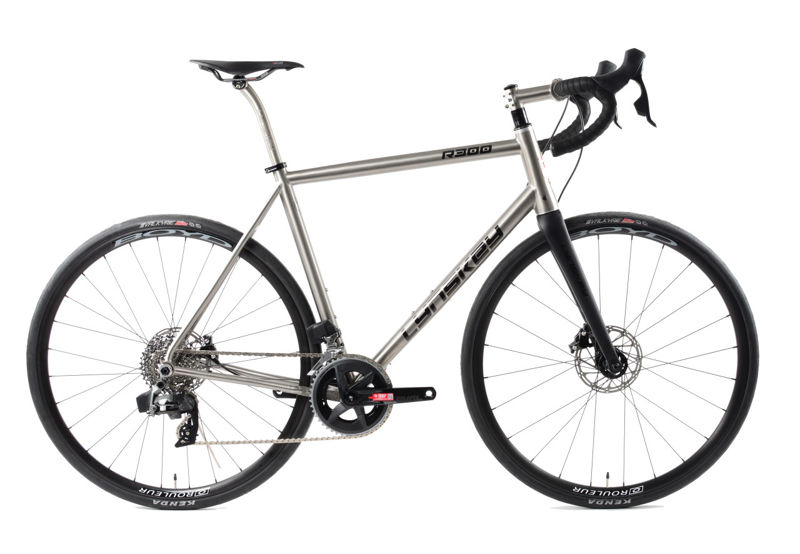

2022 Lynskey Road Sport geometry
Full frame geometry for the 2022 Lynskey Road Sport, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 520 | 359 | 75 | 71.5 | 120 | 500 | 460 | 738 | 70 | 562 | 415 | 966 |
| S | 542 | 369 | 74 | 72.5 | 141 | 525 | 480 | 750 | 70 | 569 | 415 | 974 |
| M | 556 | 376 | 73.5 | 72.5 | 156 | 541 | 500 | 770 | 69.8 | 581 | 415 | 985 |
| ML | 575 | 382 | 73 | 73 | 176 | 557 | 520 | 790 | 67.5 | 589 | 415 | 994 |
| L | 594 | 391 | 73 | 73 | 196 | 573 | 540 | 806 | 67.5 | 603 | 415 | 1009 |
| XL | 614 | 396 | 72.5 | 73 | 218 | 590 | 560 | 830 | 66.5 | 615 | 415 | 1021 |
All measurements in millimetres unless marked (°) for angles.
