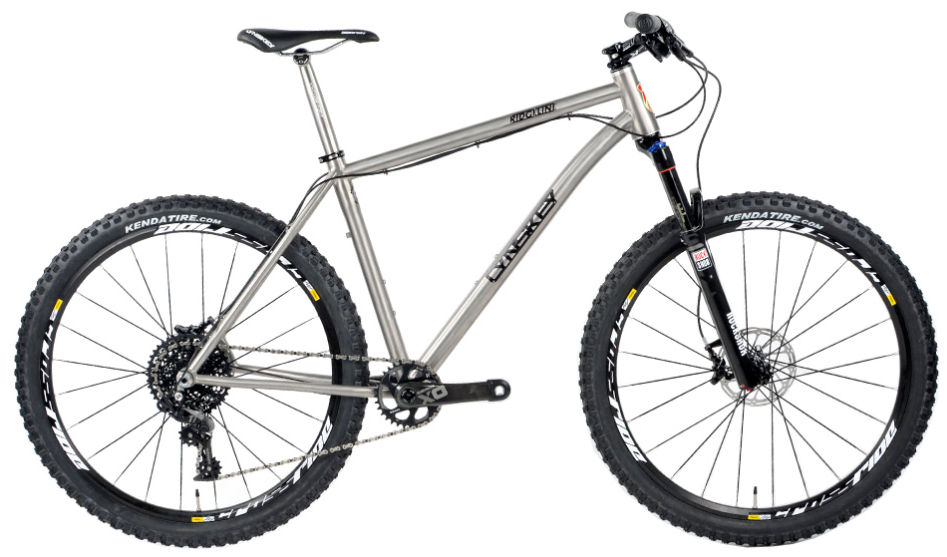

2016 Lynskey Ridgeline 27.5 MK I geometry
Full frame geometry for the 2016 Lynskey Ridgeline 27.5 MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 592 | 359 | 73 | 69 | 108 | 540 | 356 | 699 | 34 | 430 |
| M | 595 | 386 | 73 | 69 | 111 | 584 | 432 | 752 | 34 | 430 |
| S | 595 | 360 | 73 | 69 | 111 | 559 | 406 | 718 | 34 | 430 |
| L | 619 | 414 | 73 | 69 | 137 | 603 | 483 | 775 | 34 | 430 |
| XL | 632 | 419 | 73 | 69 | 149 | 612 | 533 | 838 | 34 | 430 |
All measurements in millimetres unless marked (°) for angles.
