2016 Lynskey · RD

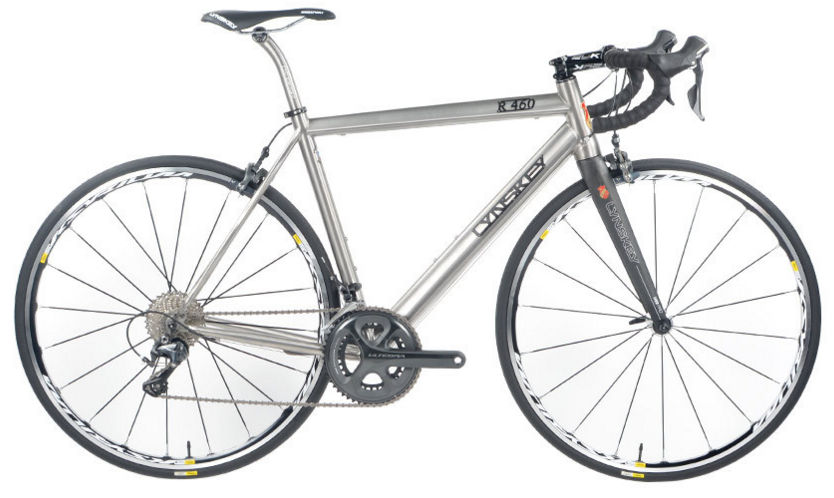

2016 Lynskey R460 Disc geometry
Full frame geometry for the 2016 Lynskey R460 Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 510 | 372 | 75 | 71.5 | 111 | 510 | 460 | 730 | 70 | 571 | 415 | 976 | 45 |
| S | 527 | 378 | 74 | 72.5 | 126 | 530 | 480 | 745 | 70 | 574 | 415 | 979 | 45 |
| M | 541 | 389 | 73.5 | 72.5 | 141 | 550 | 500 | 760 | 70 | 590 | 415 | 995 | 45 |
| ML | 562 | 394 | 73 | 73 | 161 | 565 | 520 | 780 | 68 | 595 | 415 | 1008 | 45 |
| L | 580 | 408 | 73 | 73 | 180 | 585 | 540 | 800 | 68 | 615 | 415 | 1020 | 45 |
| XL | 597 | 422 | 72.5 | 73 | 201 | 610 | 560 | 816 | 67 | 635 | 415 | 1040 | 45 |
All measurements in millimetres unless marked (°) for angles.
