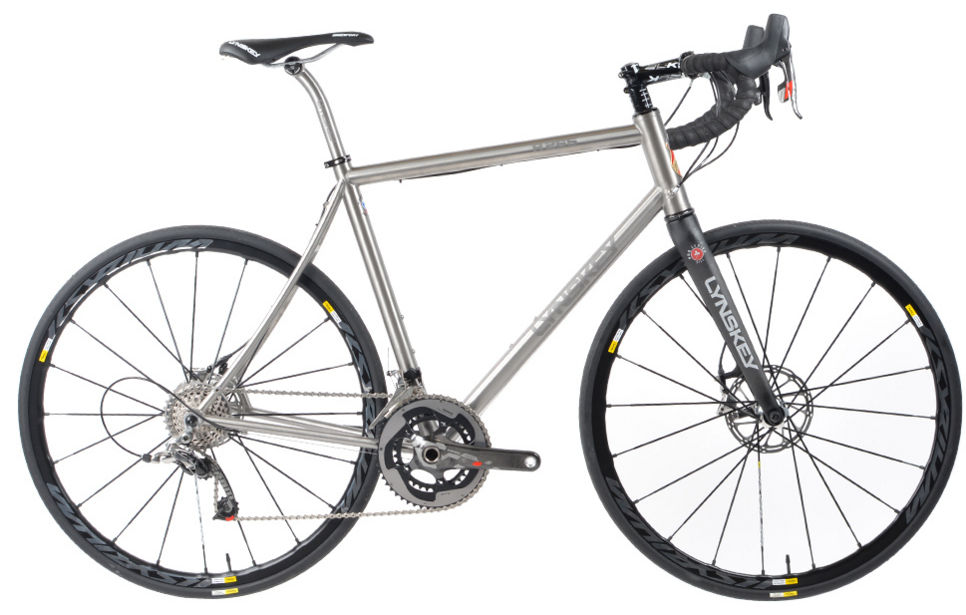

2016 Lynskey R265 Disc geometry
Full frame geometry for the 2016 Lynskey R265 Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 537 | 373 | 74.5 | 71.5 | 130 | 525 | 470 | 730 | 68 | 580 | 425 | 995 | 43 |
| S | 551 | 374 | 74 | 71.5 | 145 | 535 | 500 | 750 | 68 | 586 | 425 | 1002 | 43 |
| M | 567 | 380 | 73.5 | 72 | 160 | 550 | 520 | 770 | 68 | 592 | 425 | 1008 | 43 |
| ML | 583 | 386 | 73.5 | 72.5 | 175 | 560 | 540 | 790 | 68 | 598 | 425 | 1013 | 43 |
| L | 603 | 390 | 73 | 72.5 | 195 | 575 | 560 | 806 | 68 | 608 | 425 | 1024 | 43 |
| XL | 622 | 390 | 72.5 | 72.5 | 215 | 585 | 580 | 830 | 68 | 612 | 425 | 1028 | 43 |
All measurements in millimetres unless marked (°) for angles.
