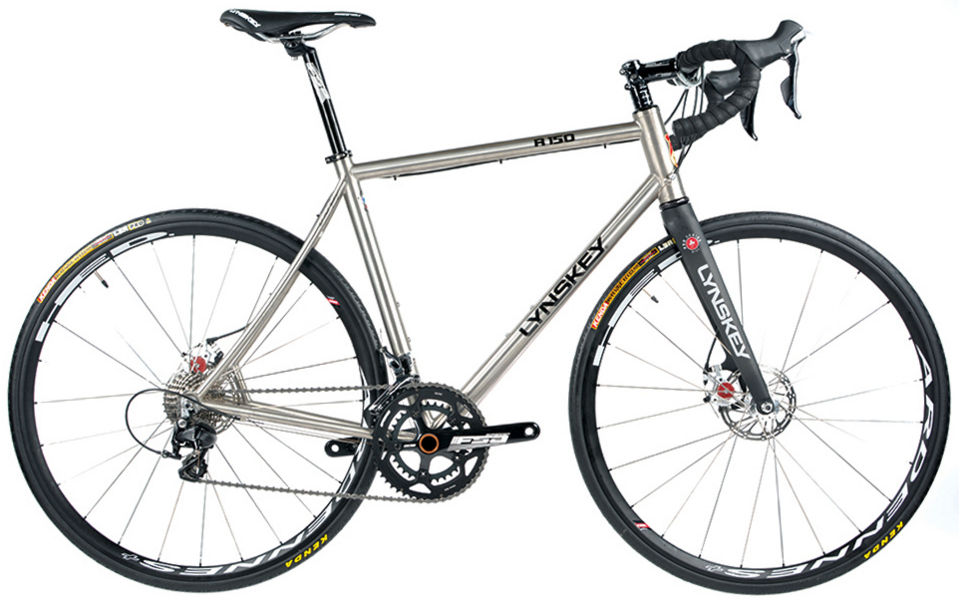

2016 Lynskey R150 Disc geometry
Full frame geometry for the 2016 Lynskey R150 Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 520 | 359 | 75 | 71.5 | 110 | 500 | 460 | 730 | 70 | 560 | 415 | 957 | 43 |
| S | 542 | 369 | 74 | 72.5 | 130 | 525 | 480 | 750 | 70 | 567 | 415 | 965 | 43 |
| M | 556 | 376 | 73.5 | 72.5 | 145 | 541 | 500 | 770 | 70 | 579 | 415 | 976 | 43 |
| ML | 575 | 382 | 73 | 73 | 165 | 557 | 520 | 790 | 68 | 587 | 415 | 985 | 43 |
| L | 594 | 391 | 73 | 73 | 185 | 573 | 540 | 806 | 68 | 601 | 415 | 999 | 43 |
| XL | 614 | 396 | 72.5 | 73 | 208 | 590 | 560 | 830 | 67 | 614 | 415 | 1015 | 43 |
All measurements in millimetres unless marked (°) for angles.
