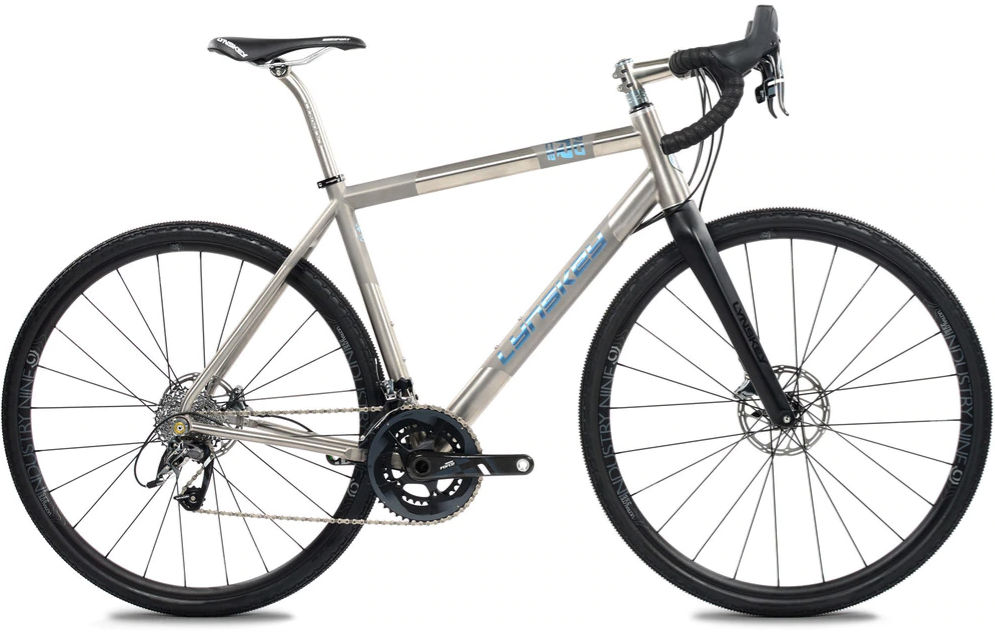

2019 Lynskey Pro GR Race geometry
Full frame geometry for the 2019 Lynskey Pro GR Race, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 540 | 368 | 74.5 | 70.5 | 111 | 520 | 450 | 716 | 80 | 589 | 420 | 996 | 50 |
| S | 542 | 384 | 74 | 70.5 | 115 | 540 | 470 | 737 | 78 | 606 | 420 | 1014 | 50 |
| M | 564 | 387 | 74 | 71.5 | 135 | 550 | 490 | 758 | 78 | 608 | 420 | 1016 | 50 |
| ML | 586 | 385 | 73.5 | 71.5 | 160 | 560 | 510 | 780 | 75 | 613 | 420 | 1022 | 50 |
| L | 613 | 392 | 73.5 | 72.5 | 185 | 575 | 530 | 800 | 75 | 619 | 420 | 1028 | 50 |
| XL | 630 | 397 | 73 | 72.5 | 205 | 590 | 550 | 824 | 72 | 629 | 420 | 1038 | 50 |
All measurements in millimetres unless marked (°) for angles.
