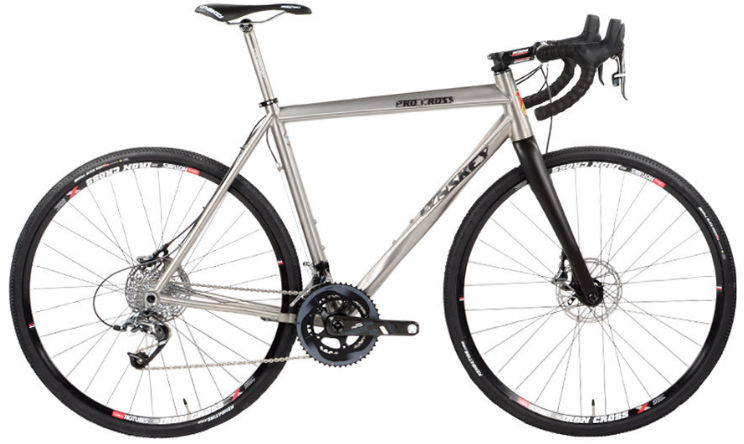

2016 Lynskey Pro Cross geometry
Full frame geometry for the 2016 Lynskey Pro Cross, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 520 | 378 | 74.5 | 70.5 | 100 | 525 | 470 | 755 | 66 | 593 | 435 | 1019 | 47 |
| S | 539 | 382 | 73.8 | 71.8 | 115 | 540 | 505 | 775 | 66 | 591 | 435 | 1018 | 47 |
| M | 560 | 387 | 73.8 | 72.3 | 135 | 550 | 526 | 795 | 66 | 597 | 435 | 1024 | 47 |
| ML | 573 | 388 | 73.3 | 72.3 | 150 | 560 | 541 | 811 | 66 | 603 | 435 | 1029 | 47 |
| L | 585 | 399 | 73.3 | 72.8 | 160 | 575 | 551 | 826 | 66 | 613 | 435 | 1039 | 47 |
| XL | 605 | 402 | 72.8 | 72.8 | 180 | 589 | 571 | 844 | 66 | 621 | 435 | 1048 | 47 |
All measurements in millimetres unless marked (°) for angles.
