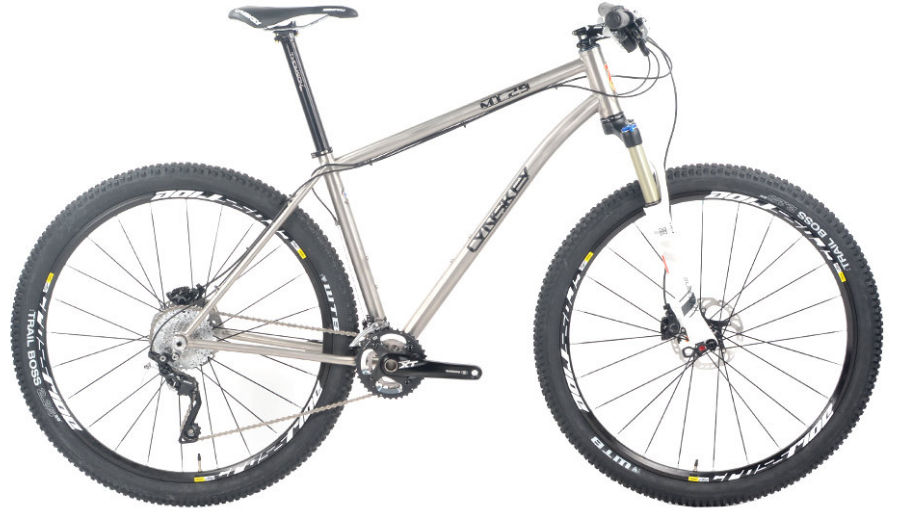

2016 Lynskey MT 29 geometry
Full frame geometry for the 2016 Lynskey MT 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 622 | 387 | 73 | 70 | 115 | 579 | 381 | 711 | 51 | 445 |
| M | 624 | 411 | 73 | 70.5 | 115 | 605 | 419 | 770 | 51 | 445 |
| L | 651 | 422 | 73 | 71 | 140 | 622 | 470 | 800 | 51 | 445 |
| XL | 659 | 432 | 73 | 71.5 | 147 | 635 | 521 | 838 | 51 | 445 |
All measurements in millimetres unless marked (°) for angles.
