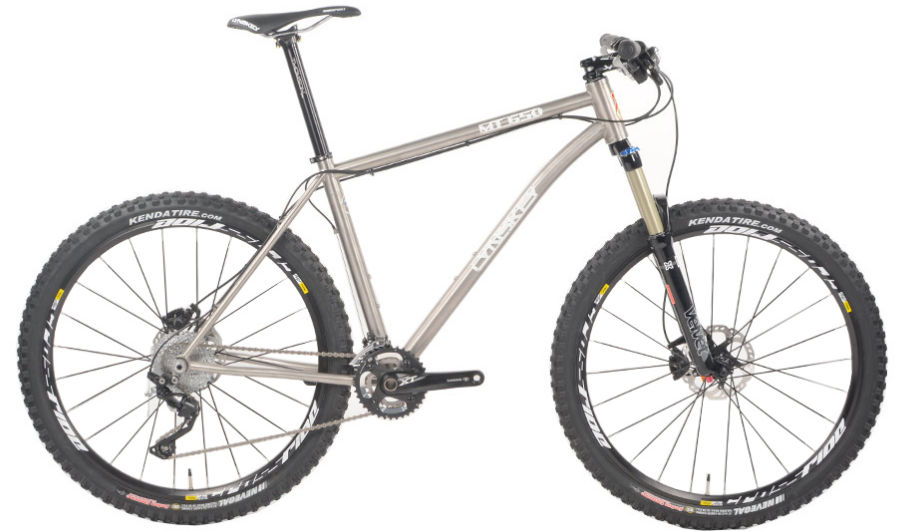

2016 Lynskey MT 27.5 geometry
Full frame geometry for the 2016 Lynskey MT 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 589 | 405 | 73 | 69 | 109 | 584 | 432 | 752 | 34 | 430 |
| S | 589 | 379 | 73 | 69 | 109 | 559 | 381 | 718 | 34 | 430 |
| XS | 589 | 360 | 73 | 69 | 108 | 540 | 356 | 699 | 34 | 430 |
| L | 613 | 416 | 73 | 69 | 137 | 603 | 483 | 800 | 34 | 430 |
| XL | 625 | 421 | 73 | 69 | 146 | 612 | 533 | 838 | 34 | 430 |
All measurements in millimetres unless marked (°) for angles.
