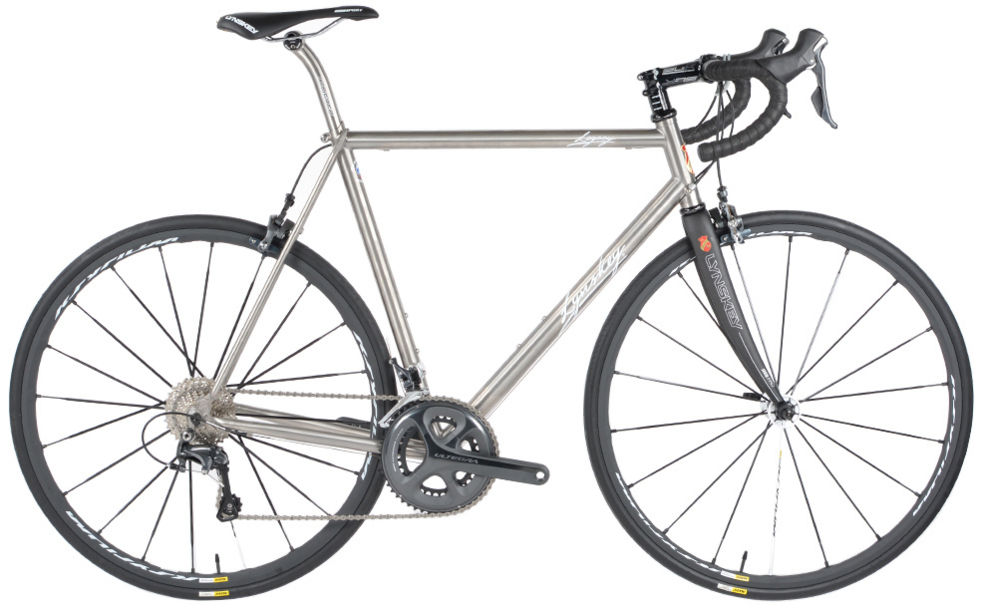

2016 Lynskey Legacy geometry
Full frame geometry for the 2016 Lynskey Legacy, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 514 | 387 | 75.2 | 72.5 | 99 | 5250 | 500 | 771 | 72 | 576 | 415 | 981 | 43 |
| S | 531 | 385 | 74.3 | 72.5 | 117 | 5350 | 520 | 788 | 72 | 579 | 415 | 983 | 43 |
| M | 550 | 387 | 74 | 72.5 | 136 | 5450 | 540 | 806 | 72 | 587 | 415 | 991 | 43 |
| ML | 566 | 388 | 73.1 | 73 | 152 | 560 | 560 | 822 | 72 | 589 | 415 | 993 | 43 |
| L | 585 | 396 | 73 | 73 | 172 | 575 | 580 | 841 | 72 | 602 | 415 | 1007 | 43 |
| XL | 612 | 395 | 72.3 | 73 | 199 | 590 | 610 | 867 | 72 | 609 | 415 | 1014 | 43 |
All measurements in millimetres unless marked (°) for angles.
