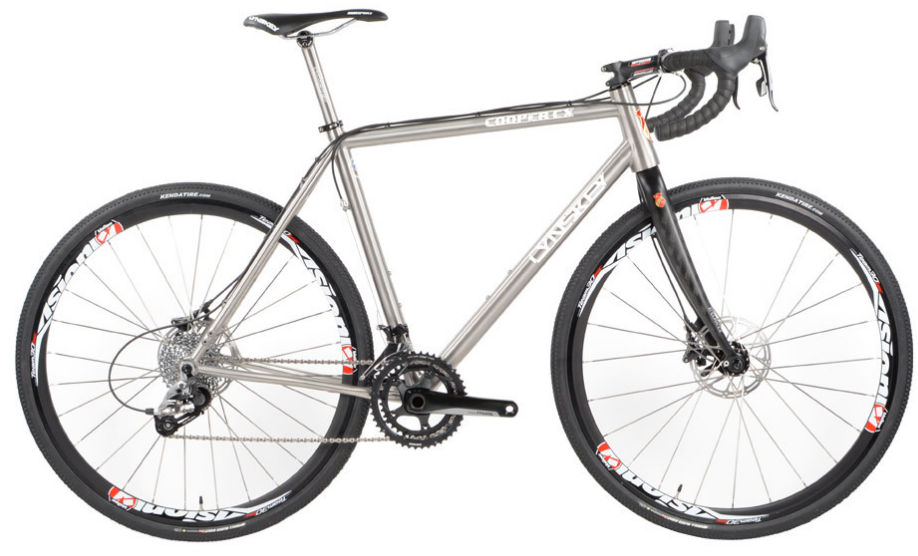

2016 Lynskey Cooper CX MK I geometry
Full frame geometry for the 2016 Lynskey Cooper CX MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 527 | 377 | 74.5 | 70.5 | 111 | 525 | 470 | 755 | 66 | 594 | 435 | 1021 | 45 |
| S | 546 | 380 | 73.8 | 71.8 | 124 | 540 | 505 | 775 | 66 | 591 | 435 | 1018 | 45 |
| M | 567 | 384 | 73.8 | 72.3 | 144 | 550 | 526 | 795 | 66 | 597 | 435 | 1024 | 45 |
| ML | 581 | 385 | 73.3 | 72.3 | 158 | 560 | 541 | 811 | 66 | 603 | 435 | 1029 | 45 |
| L | 593 | 397 | 73.3 | 72.8 | 171 | 575 | 551 | 826 | 66 | 613 | 435 | 1039 | 45 |
| XL | 612 | 400 | 72.8 | 72.8 | 191 | 589 | 571 | 844 | 66 | 621 | 435 | 1048 | 45 |
All measurements in millimetres unless marked (°) for angles.
