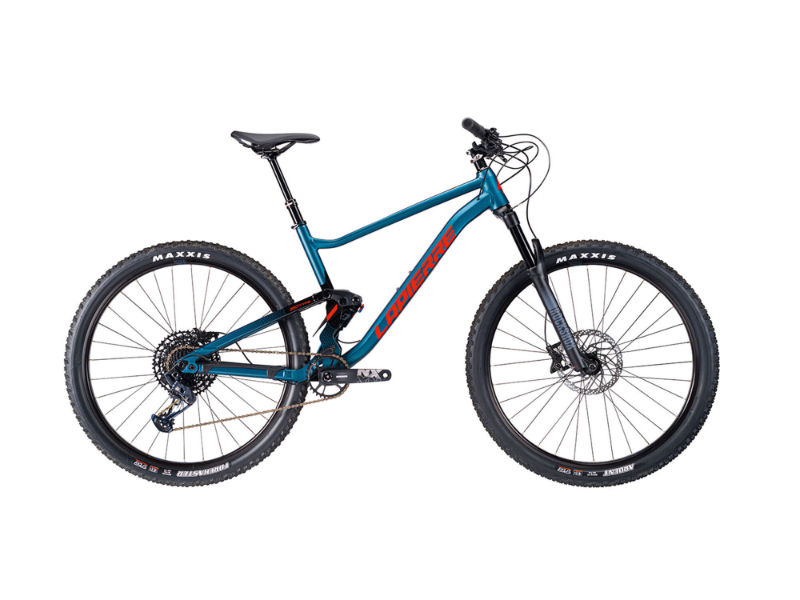

2026 Lapierre Zesty TR geometry
Full frame geometry for the 2026 Lapierre Zesty TR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 615.5 | 431.9 | 77.1 | 66 | 110 | 572.9 | 390 | 35 | 431.4 | 1169.6 |
| M | 621.9 | 458 | 77.1 | 66 | 120 | 599.9 | 430 | 35 | 431.4 | 1197.4 |
| L | 633.7 | 478 | 77.1 | 66 | 130 | 623.7 | 470 | 35 | 431.4 | 1222.7 |
| XL | 642.9 | 503 | 77 | 66 | 140 | 651.6 | 510 | 35 | 431.4 | 1251.8 |
All measurements in millimetres unless marked (°) for angles.
