2027 Lapierre · RD

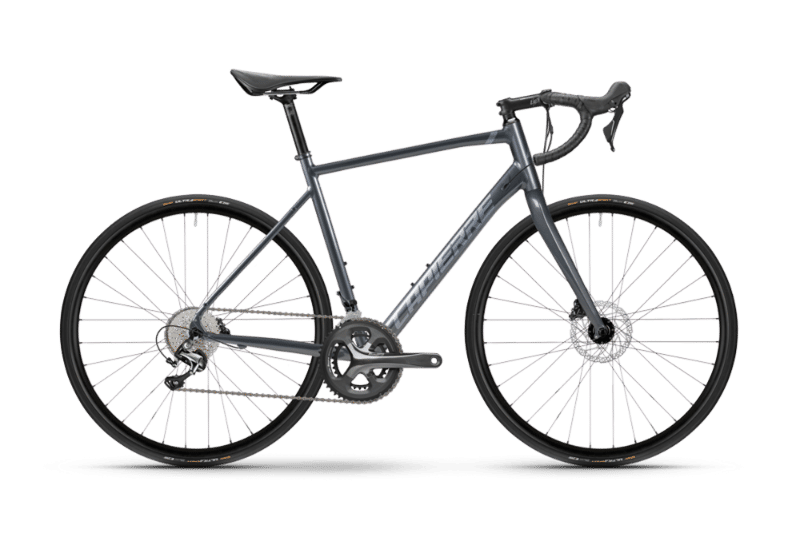

2027 Lapierre Sensium 3.0 Disc geometry
Full frame geometry for the 2027 Lapierre Sensium 3.0 Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 521 | 375 | 74.5 | 71.5 | 125 | 520 | 460 | 67.5 | 415 |
| M | 530 | 385 | 74 | 72.5 | 165 | 547 | 520 | 67.5 | 415 |
| S | 542 | 381 | 74.5 | 72 | 145 | 532 | 490 | 67.5 | 415 |
| L | 547 | 392 | 73.5 | 73 | 185 | 565 | 550 | 67.5 | 415 |
| XL | 567 | 400 | 73 | 73.5 | 205 | 585 | 580 | 67.5 | 415 |
| XXL | 586 | 411 | 73 | 74 | 220 | 600 | 610 | 67.5 | 415 |
All measurements in millimetres unless marked (°) for angles.
