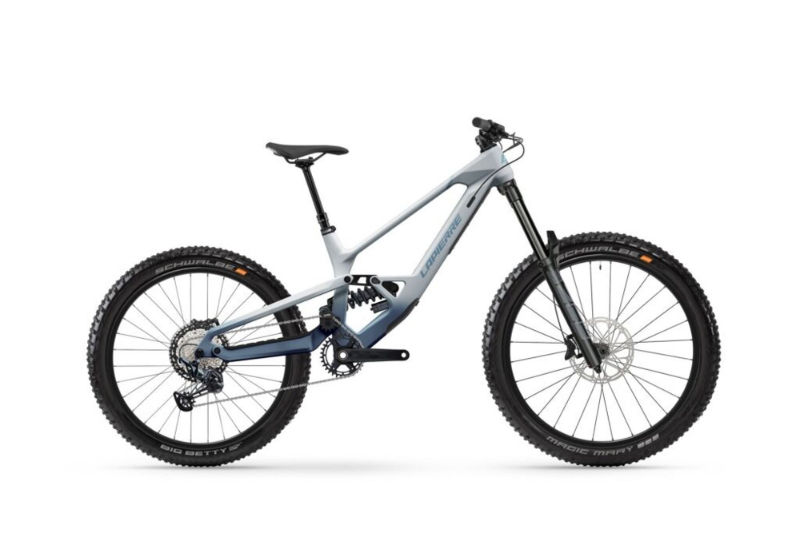

2026 Lapierre Spicy CF geometry
Full frame geometry for the 2026 Lapierre Spicy CF, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 627 | 410 | 78 | 63.5 | 100 | 543.5 | 350 | 25 | 440 | 1200 |
| S | 636 | 435 | 78 | 63.5 | 110 | 570.4 | 370 | 25 | 440 | 1229 |
| M | 641 | 460 | 78 | 63.5 | 115 | 596.4 | 400 | 25 | 440 | 1256 |
| L | 645 | 480 | 78 | 63.5 | 120 | 617.3 | 430 | 25 | 445 | 1283 |
| XL | 654 | 505 | 78 | 63.5 | 130 | 644.2 | 460 | 25 | 450 | 1318 |
All measurements in millimetres unless marked (°) for angles.
