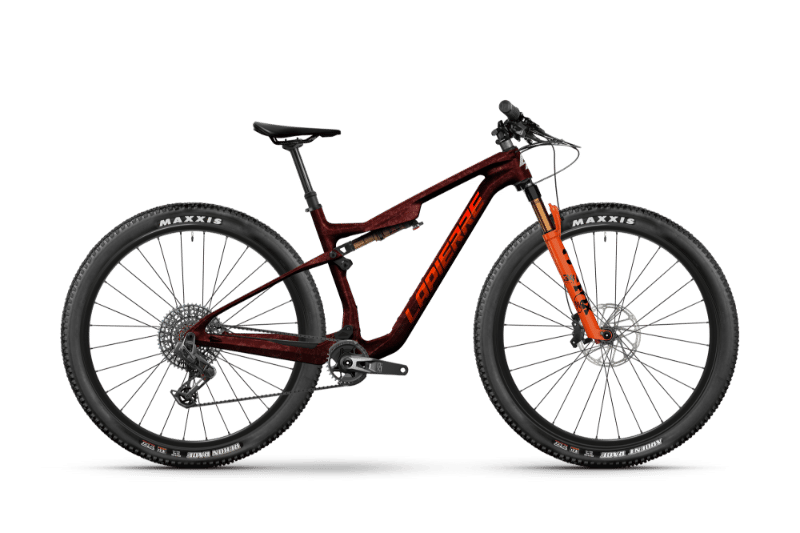

2027 Lapierre XRM geometry
Full frame geometry for the 2027 Lapierre XRM, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 584 | 415 | 74.5 | 66 | 85 | 575 | 390 | -40 | 435 | 1134 | 44 |
| M | 589 | 440 | 74.5 | 66 | 90 | 602 | 430 | -40 | 435 | 1162 | 44 |
| L | 598 | 460 | 74.5 | 66 | 100 | 624 | 470 | -40 | 435 | 1185 | 44 |
| XL | 608 | 485 | 74.5 | 66 | 110 | 651 | 510 | -40 | 435 | 1214 | 44 |
All measurements in millimetres unless marked (°) for angles.
