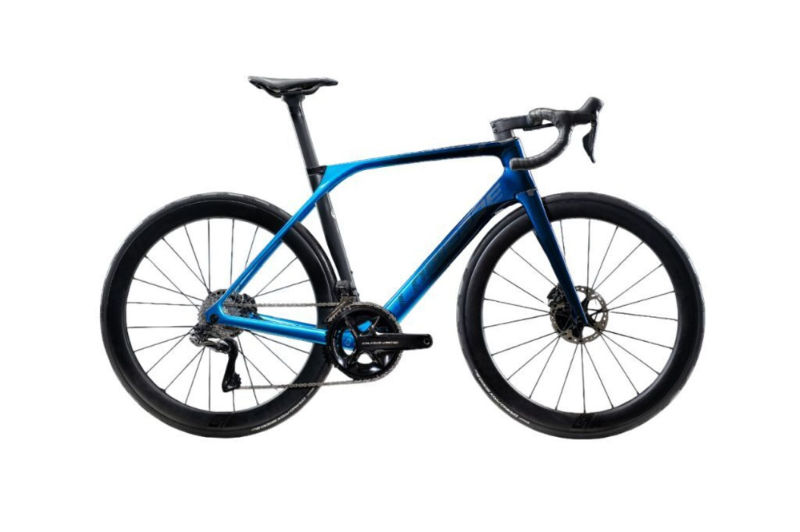

2026 Lapierre Aircode DRS geometry
Full frame geometry for the 2026 Lapierre Aircode DRS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 501 | 376 | 74 | 72 | 105 | 520 | 440 | 67 | 405 | 969 |
| S | 516 | 383 | 74 | 72 | 120 | 531 | 460 | 67 | 405 | 981 |
| M | 538 | 393 | 74 | 73 | 140 | 547 | 490 | 67 | 405 | 989 |
| L | 557 | 403 | 73.5 | 73 | 160 | 568 | 520 | 67 | 405 | 1005 |
| XL | 580 | 415 | 73.5 | 74 | 180 | 587 | 550 | 67 | 405 | 1014 |
All measurements in millimetres unless marked (°) for angles.
