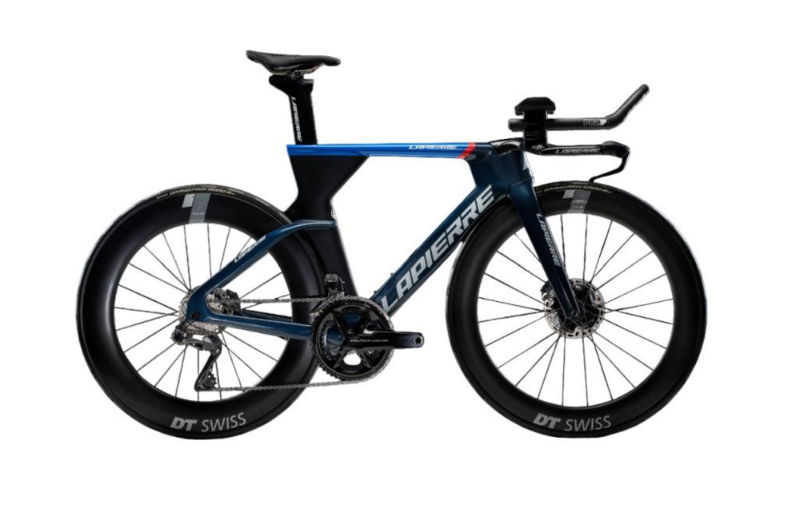

2026 Lapierre Aerostorm DRS geometry
Full frame geometry for the 2026 Lapierre Aerostorm DRS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 470 | 380 | 75 | 72 | 72 | 505 | 490 | 68 | 405 | 957.2 |
| M | 500 | 395 | 75 | 72 | 102 | 529 | 510 | 68 | 405 | 977.6 |
| L | 530 | 410 | 75 | 72 | 133 | 552 | 550 | 68 | 405 | 1002.1 |
| XL | 560 | 425 | 75 | 72 | 165 | 575 | 580 | 68 | 405 | 1026.6 |
All measurements in millimetres unless marked (°) for angles.
