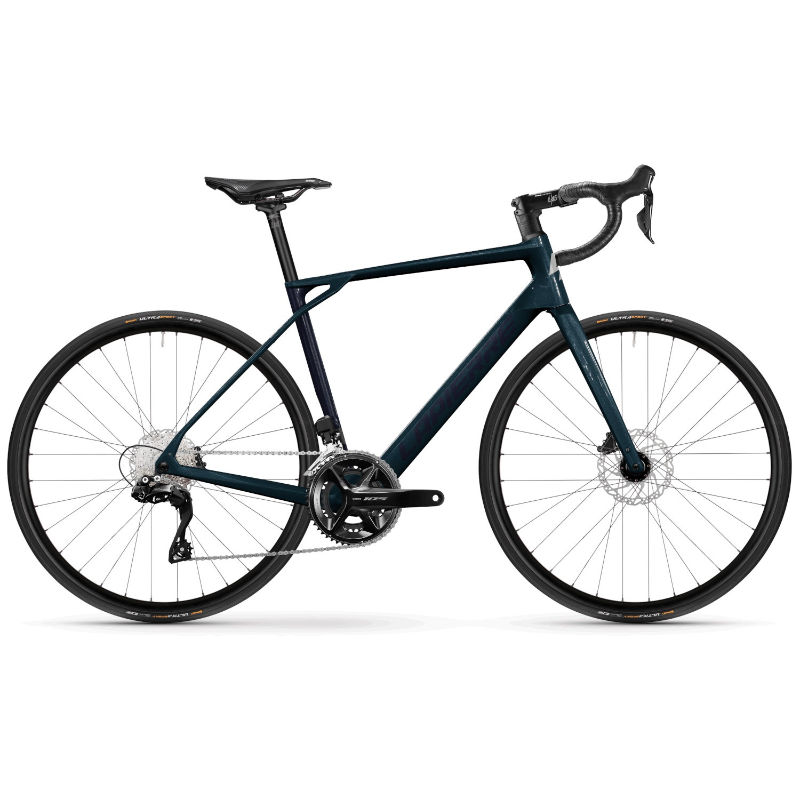

2026 Lapierre Pulsium geometry
Full frame geometry for the 2026 Lapierre Pulsium, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 541 | 379 | 74.5 | 71 | 135 | 529 | 460 | 72 | 415 | 1002 |
| M | 562 | 384 | 74 | 71.5 | 155 | 545 | 490 | 72 | 415 | 1009 |
| L | 579 | 389 | 73.5 | 72 | 175 | 561 | 520 | 69 | 415 | 1017 |
| XL | 599 | 394 | 73 | 72 | 195 | 577 | 550 | 69 | 415 | 1028 |
All measurements in millimetres unless marked (°) for angles.
