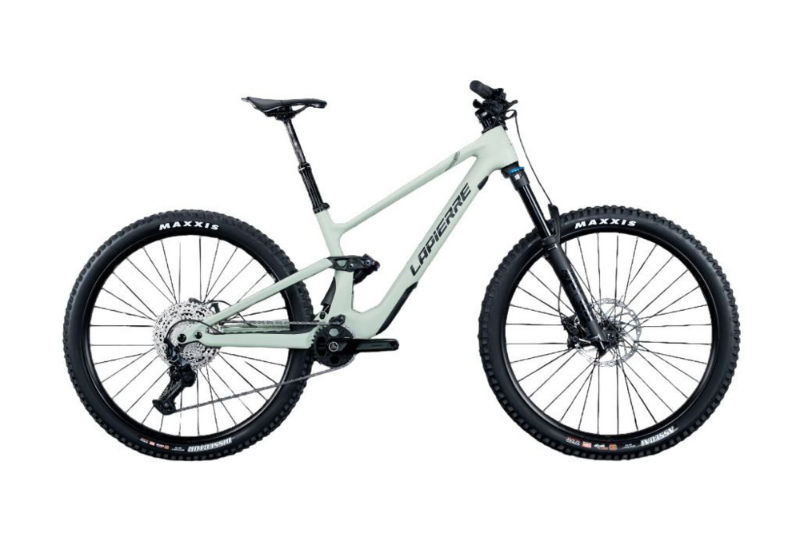

2026 Lapierre Zesty CF geometry
Full frame geometry for the 2026 Lapierre Zesty CF, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 617 | 435 | 77 | 64.5 | 105 | 577.5 | 400 | 26.4 | 432.6 | 1197 |
| M | 626 | 460 | 77 | 64.5 | 115 | 604.6 | 430 | 26.4 | 432.6 | 1226 |
| L | 635 | 480 | 77 | 64.5 | 125 | 626.7 | 460 | 26.4 | 437.6 | 1255 |
| XL | 644 | 505 | 77 | 64.5 | 135 | 653.7 | 500 | 26.4 | 442.6 | 1290 |
All measurements in millimetres unless marked (°) for angles.
