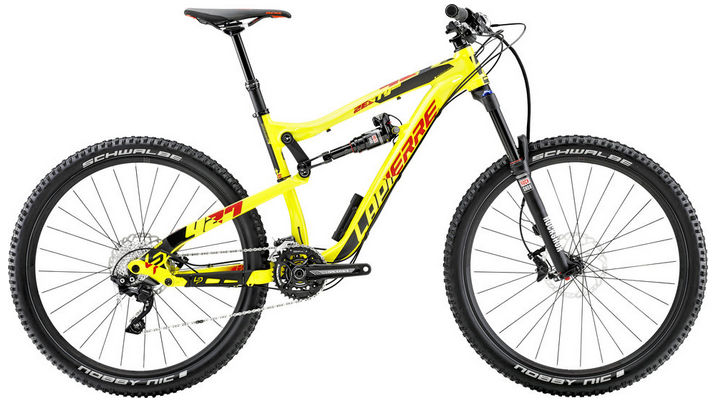

2015 Lapierre Zesty AM geometry
Full frame geometry for the 2015 Lapierre Zesty AM, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 597 | 434 | 74 | 67 | 110 | 605 | 440 | 12 | 430 | 40 |
| S | 597 | 409 | 74 | 67 | 110 | 580 | 400 | 12 | 430 | 40 |
| L | 620 | 447 | 74 | 67 | 135 | 625 | 480 | 12 | 430 | 40 |
| XL | 620 | 472 | 74 | 67 | 135 | 650 | 520 | 12 | 430 | 40 |
All measurements in millimetres unless marked (°) for angles.
