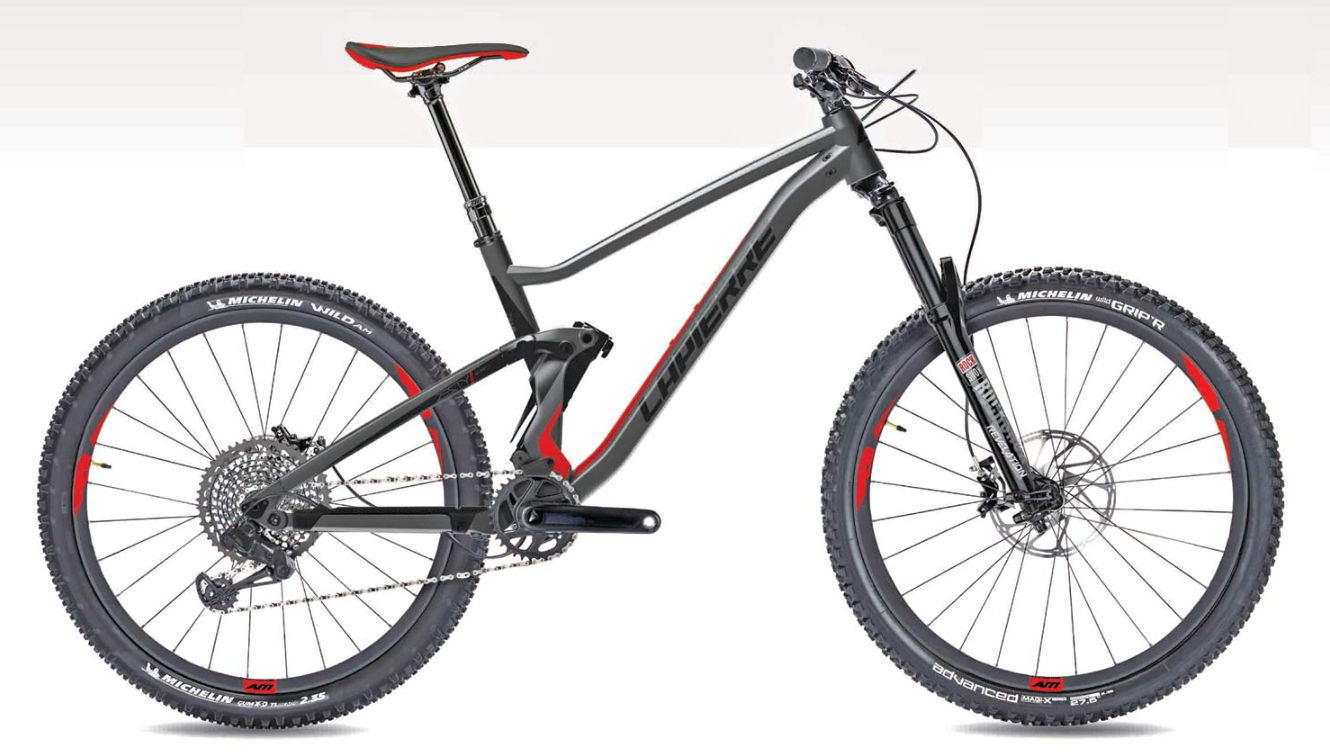

2019 Lapierre Zesty AM MKIII Al geometry
Full frame geometry for the 2019 Lapierre Zesty AM MKIII Al, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S (27.5) | 594 | 420 | 75.7 | 65.5 | 90 | 571 | 400 | 20 | 425 | 1157 |
| M (27.5) | 608 | 450 | 75.7 | 65.5 | 105 | 605 | 430 | 20 | 425 | 1194 |
| M (29) | 613 | 445 | 75 | 66 | 105 | 608 | 430 | 32 | 433 | 1188 |
| L (29) | 627 | 470 | 75 | 66 | 120 | 637 | 460 | 32 | 433 | 1218 |
| XL (29) | 641 | 495 | 75 | 66 | 135 | 666 | 500 | 32 | 433 | 1250 |
All measurements in millimetres unless marked (°) for angles.
