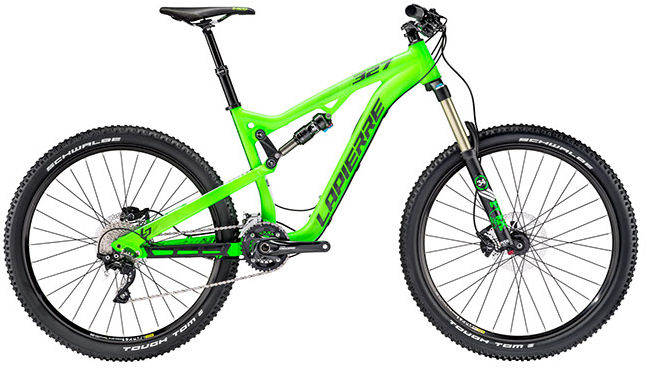

2016 Lapierre Zesty AM MKII Al geometry
Full frame geometry for the 2016 Lapierre Zesty AM MKII Al, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 591 | 421 | 74.5 | 66.5 | 110 | 585 | 390 | 10 | 430 |
| M | 600 | 444 | 74.5 | 66.5 | 120 | 610 | 430 | 10 | 430 |
| L | 610 | 461 | 74.5 | 66.5 | 130 | 630 | 460 | 10 | 430 |
| XL | 619 | 483 | 74.5 | 66.5 | 140 | 655 | 500 | 10 | 430 |
All measurements in millimetres unless marked (°) for angles.
