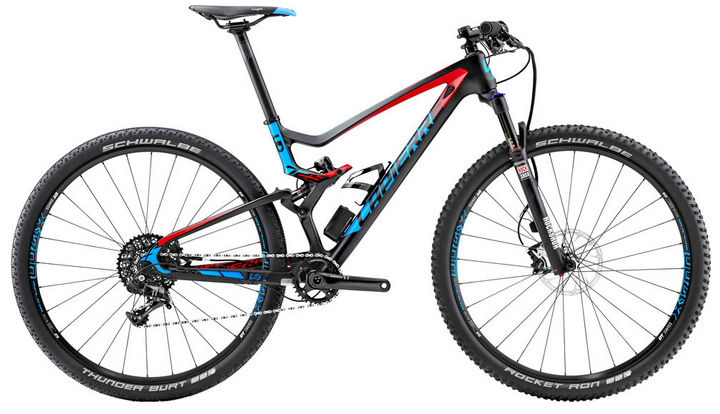

2015 Lapierre XR geometry
Full frame geometry for the 2015 Lapierre XR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 591 | 414 | 72.5 | 70 | 100 | 600 | 440 | 40 | 446 | 51 |
| S | 591 | 386 | 72.5 | 70 | 100 | 572 | 410 | 40 | 446 | 51 |
| L | 610 | 428 | 72.5 | 70 | 120 | 620 | 480 | 40 | 446 | 51 |
| XL | 610 | 448 | 72.5 | 70 | 120 | 640 | 530 | 40 | 446 | 51 |
All measurements in millimetres unless marked (°) for angles.
